Description
Technical data
| Parameter | Value |
| Model | BD8A |
| Device dimensions (width x height x depth) | 105 x 132 x 130 mm |
| Device weight | 747 g |
| Interfaces | USB-C port for charger |
| Range | 30 m |
| Type of protection | IP54 |
| Operating conditions | -10 °C to 50 °C < 70 % RH |
| Storage conditions | -20 °C to 60 °C < 80 % RH |
| Levelling compensation | 3.5° ± 1° |
| Levelling duration | < 3 s |
| Laser output | < 1 mW (515 nm) |
| Laser accuracy | ±0.3 mm/m |
| Laser class | 2 |
| Power supply | |
| Battery | 2 x 3.7 V Li-ion (2000 mAh) |
| Capacity | 4000 mAh |
| Charging time | 1 – 2 h |
| Nominal voltage | 5 V |
| Scope of delivery • 1 x Cross line laser BD8A • 1 x USB cable • 1 x Wall bracket • 1 x Height-adjustable platform • 1 x Tripod mounting plate • 1 x Tripod • 1 x Manual |
Maximum visibility. Maximum precision. Full 360° control

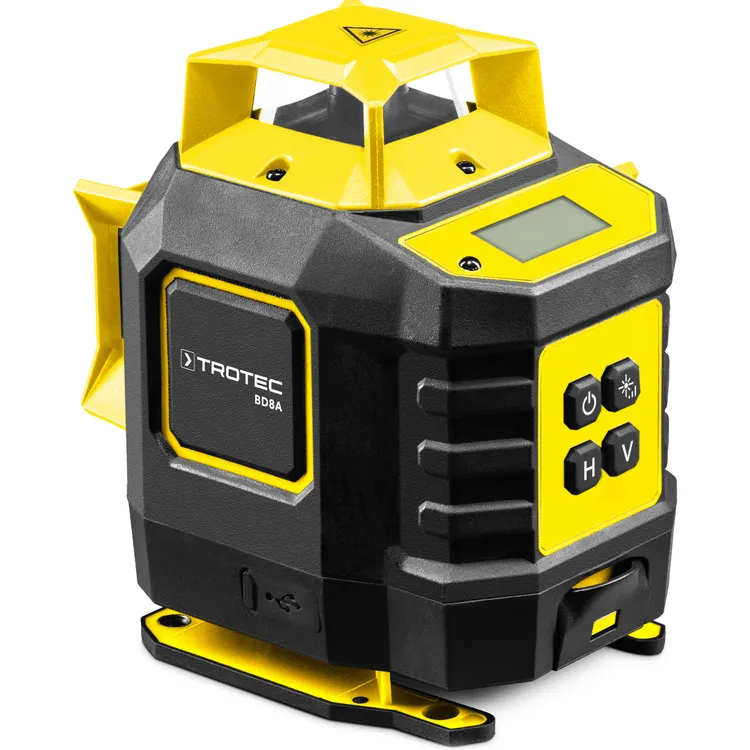

The rechargeable BD8A 360° rotary laser projects two horizontal and two vertical 360° laser lines for simultaneous, perfectly aligned levelling in all directions. Thanks to its bright green laser technology, self-levelling function and flexible line combinations, this powerful precision tool enables fast, accurate and highly efficient alignment, marking and installation work on construction sites and in interior finishing projects.
