Benefits in practice

• Fast and non-contact detection of AC voltages
• Multi-colored LED indicator integrated in the measuring tip [green: OK, red: ATTENTION! Voltage!, orange (instead of green): Switching to higher sensitivity (24 V) active]
• Two different sensitivity levels selectable (200 V, 24 V)
• Visual and audible alarm when power is applied
• On / off switch for completely deactivating the device when not in use (energy-saving mode)
• Compact stylus design with pocket clip
• Integrated LED light for working under unfavorable lighting conditions
• Optimal price-performance ratio

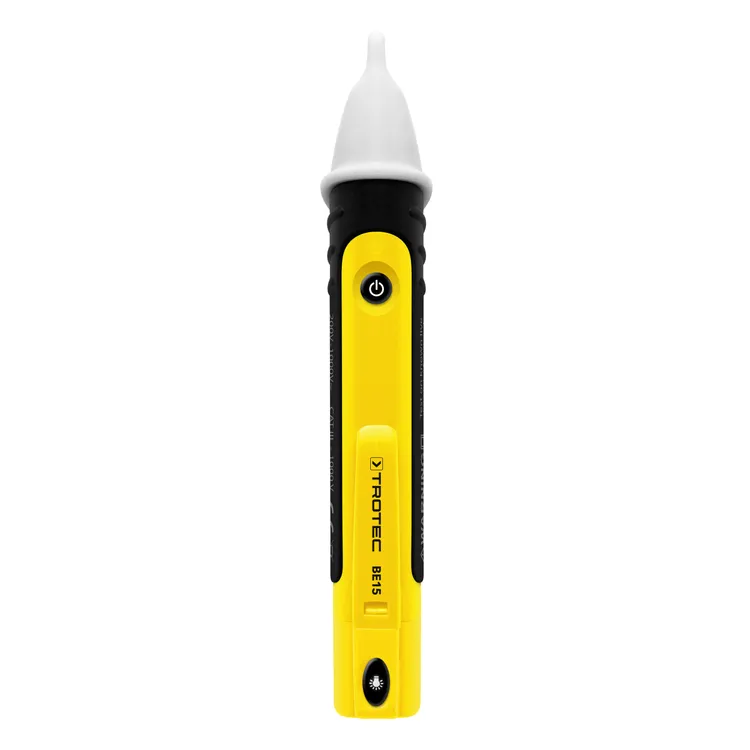

Practical detail: On the clip side of the BE15, a high-performance LED flashlight is integrated, with which even dark measuring point areas can be optimally illuminated.

The BE15 should be included in the basic test kit of all home and craftsmen who carry out work on live installations.

Here are some technical details of the BE15

• Measuring circuit category: CAT III 1000 V / CAT IV 600 V
• Measuring range UAC: 24 to 1,000 V
• Micro-environment: Pollution degree 2
• Type of test: single-pole, contactless
• Voltage display: LED
• Functions: visual and acoustic continuity display, integrated flashlight for measuring point illumination
• Safety: EN 61326, EN 61010-1, EN 61010-02-033
• Power supply: 2 x 1.5V, IEC LR03 (AAA)
• Operating temperature min. 0 ° C to + 40 ° C
• Max. Humidity range 80% R.F.
• Storage conditions: -10 ° C to 60 ° C
• Storage humidity: <80% RH
• Dimensions: 158 x 21 x 25 mm
• Weight: 48 g (including batteries)
• Supplied with: measuring device, operating instructions
