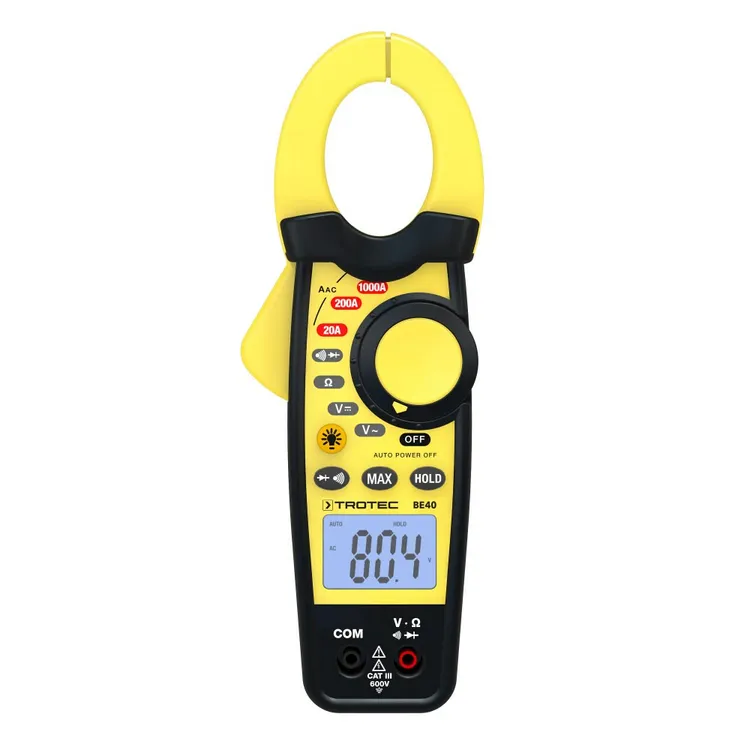

BE40 Clamp Meter

At-a-glance look at the BE40

  • Measuring range electricity: 0.01 A AC – 1000 A AC
  • Measuring range voltage: 0 – 600 V (AC/DC)
  • Measuring range resistance: 0.01 Ω – 20 MΩ
  • Large, backlit display (3 3/4-lined)
  • Line diameter / jaw opening: approx. 30 mm
  • Diode test: Test current 0.3 mA, test voltage 1.5 VDC
  • Continuous peep: below threshold <120 Ω, test current <1 mA
  • Value falls short or exceeds measuring range threshold: “OL” appears in display
  • Measuring rate: 2 measurements/sec
  • Input impedance: 7.8 MΩ (VDC and VAC)
  • AC current band width: 50/60Hz (AAC)
  • AC voltage band width: 50/60Hz (VAC)
  • Surrounding temperature (operational): -10°C to 50°C (14°F to 122°F)
  • Surrounding temperature (storage): -30°C to 60°C (-22°F to 140°F)
  • Relative humidity: 0% ~ max. 85%
  • Measuring circuit category / Norm: CAT III 600V / IEC 61010
  • Micro-environment: Degree of soiling 2
  • Battery type: 2 x 1.5V AAA
  • Auto power off: after 15 mins of non-use
  • Dimensions: 229 x 80 x 48 mm
  • Weight: 303 g

Included in the scope of delivery: BE40 clamp meter, one pair of measuring cables (red + black), carry bag, user guide.

Add to quote

Description

Parameter Value
Model BE40
Size of the clamp opening approx. 30 mm
Diode test test current of 0.3 mA
open-circuit voltage: 1.5 V DC
Continuity test threshold < 120 Ω; test current < 1 mA
Measuring range exceeded OL is displayed
Measuring rate 2 per second
Input impedance 7.8 MΩ (V DC and V AC)
Frequency range alternating current 50/60 Hz (A AC)
Frequency range AC voltage 50/60 Hz (V AC)
Operating temperature -10 °C to 50 °C (-14 °F to
122 °F)
Storage temperature -30 °C to 60 °C (-22 °F to
140 °F)
Relative humidity up to 85 %
Overvoltage protection category lll, 600 V
Battery 2 x 1.5 V, type AAA
Automatic switch-off after approx. 15 minutes
Dimensions
(length x width x height)		 229 x 48 x 80 mm
Weight approx. 303 g
Measuring level Measuring range Resolution Accuracy (% of the reading)
Alternating current
20 A 0 A to 20.00 A 0.01 A ± (2.5 % +
10 digits)
200 A 0 A to 200.0 A 0.1 A ± (2.5 % +
10 digits)
1000 A 0 A to 1000 A 1 A ± (3.0 % +
8 digits)
DC voltage
200 mV 0 mV to 200.0 mV 0.1 mV ± (0.8 % +
5 digits)
2 V 0 mV to 2000 mV 0.001 V ± (1.2 % +
3 digits)
20 V 0 V to 20.00 V 0.01 V ± (1.2 % +
3 digits)
200 V 0 V to 200.0 V 0.1 V ± (1.2 % +
3 digits)
600 V 0 V to 600.0 V 1 V ± (1.5 % +
3 digits)
AC voltage
200 mV 0 mV to 200.0 mV 0.1 mV ± (1.5 % +
30 digits)
2 V 0 mV to 2000 mV 0.001 V ± (1.5 % +
3 digits)
20 V 0 V to 20.00 V 0.01 V ± (1.5 % +
3 digits)
200 V 0 V to 200.0 V 0.1 V ± (1.5 % +
3 digits)
600 V 0 V to 600.0 V 1 V ± (2.0 % +
4 digits)
Resistance
200 Ω 0 Ω to 200.0 Ω 0.1 Ω ± (1.0 % +
4 digits)
2 kΩ 0 Ω to 2000 Ω 1 Ω ± (1.5 % +
2 digits)
20 kΩ 0 kΩ to 20.00 kΩ 10 Ω ± (1.5 % +
2 digits)
200 kΩ 0 kΩ to 200.0 kΩ 100 Ω ± (1.5 % +
2 digits)
2 MΩ 0 MΩ to 2.000 MΩ 1 kΩ ± (2.0 % +
3 digits)
20 MΩ 0 MΩ to 20.00 MΩ 10 kΩ ± (3.0 % +
5 digits)

Contactless current measurement – fast, safe and without downtime

The BE40 clamp meter is designed for quick, convenient and highly efficient measurements. It registers the magnetic field of the flowing current, so cables, wires and conductors can be measured without direct contact and without switching off the system. This allows inspections and checks to be carried out during normal operation, saving time and money while avoiding costly shutdowns or service interruptions. Thanks to galvanic isolation, the measuring signal is completely potential-free, ensuring a particularly high level of safety during every measurement.
