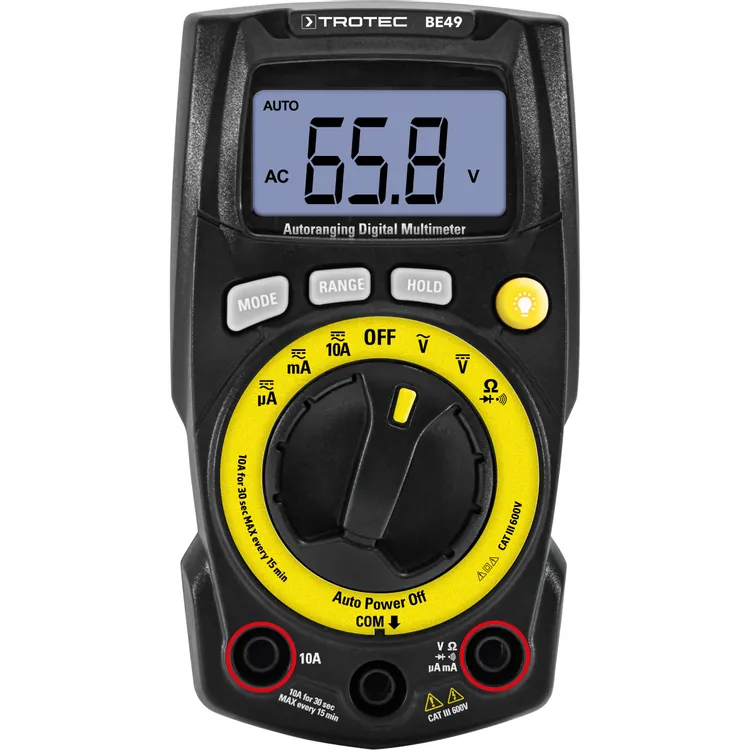

BE49 Digital Multimeter

Advantages for practical use

• Digital multifunction measuring device with seven measuring functions
• 4-digit LCD display (max. display 1999)
• Particularly hard-wearing and powerful
• Automatic and manual range selection
• CAT III 600 V
• Direct and alternating current measurement up to 10 A
• DC and AC voltage measurement up to 600 V
• Resistance measurement
• Continuity test and diode test
• Hold function
• Impact-resistant housing
• Dust-proof – protection class IP40
• Insulation protection class II for measuring device and test leads
• Backlit LC display
• Battery-saving automatic switch-off
• Battery status display

Features, scope of delivery and technical specifications

Play it safe when measuring electrical currents and voltages. The BE49 digital multimeter combines maximum safety and functionality at an excellent price-performance ratio.

LC display: backlit
LCD display: 4 digits (max. display 1999)
Dimensions: 121 x 65 x 35 mm
Weight: 170 g

DC voltage (V/DC)
Measuring range: 0.2 to 600 V
Accuracy 0.2 V: ±(0.8 % +4 digits)
Accuracy 2 V/20 V/200 V: ±(1.5 % +2 digits)
Accuracy 600 V: ±(2 % +2 digits)

AC voltage (V/AC, 50 / 60 Hz)
Measuring range: 0.2 to 600 V
Accuracy 0.2 V: ±(1.5 % +35 digits)
Accuracy 2 V/20 V/200 V: ±(1.8 % +8 digits)
Accuracy 600 V: ±(2.5 % +8 digits)

Direct current (A/DC)
Measuring range: 200 μA to 10 A
Accuracy 200 μA: ±(1.0 % +3 digits)
Accuracy 2000 μA/20 mA/200 mA: ±(1.5 % +3 digits)
Accuracy 10 A: ±(2.5 % +5 digits)

Alternating current (A/AC)
Measuring range: 0.02 A to 10 A
Accuracy 0.02 A: ±(1.5 % +5 digits)
Accuracy 2 mA/20 mA/200 mA: ±(2.0 % +5 digits)
Accuracy 10 A: ±(3.0 % +7 digits)

Resistance (Ohm)
Measuring range: 200 Ω to 20 MΩ
Accuracy 200 Ω: ±(1.0 % +4 digits)
Accuracy 2000 Ω/20 Ω/200 Ω: ±(1.5 % +2 digits)
Accuracy 2000 kΩ: ±(2.5 % +3 digits)
Accuracy 20 MΩ: ±(3.5 % +5 digits)

Scope of delivery

• Hand-held measuring device BE49
• Safety leads with test probes (2x)
• Operating instructions
