| Parameter | Value | |||
| Model | BO26 | |||
| Weight (incl. battery) | approx. 840 g | |||
| Dimensions (length x width x height) | 255 mm x 85 mm x 110 mm | |||
| Display | 3.5 in digital LC colour display (320 x 240 pixels) frame rate 30 fps |
|||
| Storage | on SD card (up to 32 GB, not included in the scope of delivery) | |||
| Video (format, resolution) | MP4/AVI/3GP (640*480) | |||
| Photo (format, resolution) | JPEG (640*480) | |||
| TV output | PAL, NTSC | |||
| Diameter of the standard camera head | 17 mm | |||
| Length of the gooseneck probe | 100 cm | |||
| Focus | approx. 5 cm to 15 cm | |||
| Image rotation | 0 to 360° (5°, 15°, 45°, 90° adjustable) | |||
| Zoom | 3-fold (digital) | |||
| Operating temperature | 0 °C to 50 °C with <80 % RH | |||
| Storage temperature | 0 °C to 50 °C with <80 % RH | |||
| Type of protection (gooseneck probe and camera head) | IP 67 | |||
| Type of protection of control unit | IP 54 | |||
| Power supply | 1 x Li-ion battery 3.7 V charger DC 5 V/2000 mA | |||
| No. | Operating element | |||
| 22 | TV out | |||
| 23 | SD card slot | |||
| 24 | USB interface | |||
| 25 | Charger connection | |||
| 26 | Reset opening | |||
| 27 | Headphone connection | |||
| 28 | Speaker | |||
| Scope of delivery •  1 x Device BO26 •  1 x gooseneck probe 1 m •  1 x 3.7 V Li-ion battery •  1 x Transport case •  1 x Accessory kit with 45° mirror, hook and magnet attachment •  1 x Video cable (RCA) •  1 x USB cable •  1 x Quick guide |
||||

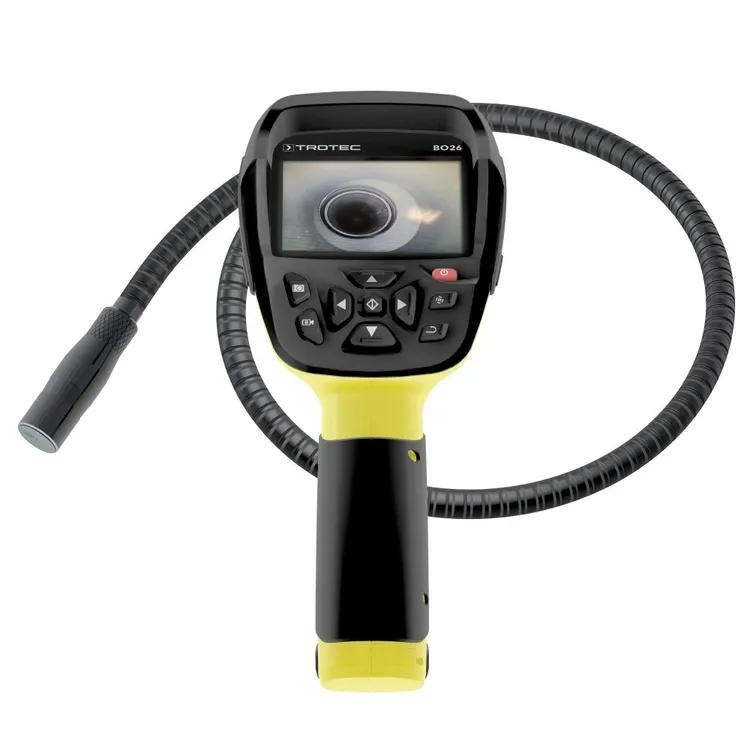

The BO26 makes visual inspections in even the most hard-to-reach areas easy and fully documented. Images and videos can be recorded directly and transferred to a PC or displayed on an external screen for detailed evaluation. Features such as 360° image rotation, a side-view mirror attachment and powerful Quad-LED illumination with adjustable brightness ensure clear, meaningful inspection results in any environment. Despite its wide range of functions, the BO26 is extremely easy to operate thanks to its intuitive multilingual on-screen menu and automatic camera settings such as exposure and focus. Practical accessories are included, allowing the BO26 to be used not only for inspection, but also as a retrieval or sampling tool.
