| Parameter | Value | |
| Model | BB30 | |
| Sensor | F (ferrous metals) | N (non-ferrous metals) |
| Possible metallic substrates (examples) | Iron, steel | Copper, aluminium, zinc, bronze and others |
| Measuring principle | Magnetic induction | Eddy current |
| Measuring range | 0 to 2000 μm 0 to 78.7 mils |
0 to 2000 μm 0 to 78.7 mils |
| Guaranteed tolerance (of the measured value) | 0 to 1000 μm (±2 % ±2 μm) 1000 to 2000 μm (±3.5 %) 0 to 39.3 mils (±2 % ±0.08 mils) 39.3 to 78.7 mils (±3.5 %) |
0 to 1000 μm (±2 % ±2 μm) 1000 to 2000 μm (±3.5 %) 0 to 39.3 mils (±2 % ±0.08 mils) 39.3 to 78.7 mils (±3.5 %) |
| Accuracy | 0 to 100 μm (0.1 μm) 100 to 1000 μm (1 μm) 1000 to 2000 μm (0.01 mm) 0 to 10 mils (0.01 mils) 10 to 78.7 mils (0.1 mils) |
0 to 100 μm (0.1 μm) 100 to 1000 μm (1 μm) 1000 to 2000 μm (0.01 mm) 0 to 10 mils (0.01 mils) 10 to 78.7 mils (0.1 mils) |
| Minimum bending radius of the object surface | 1.5 mm | 3 mm |
| Diameter of the smallest measuring surface | 7 mm | 5 mm |
| Min. measurable layer thickness | 0.5 μm | 0.3 μm |
| Measurement outside the measuring range (display indication) | – – – | —- |
| Ambient temperature | 0 to 40 °C (32 to 104 °F) at 20 to 90 % RH | |
| Bluetooth standard | Bluetooth 4.0, Low Energy | |
| Bluetooth frequency range | 2.4 GHz | |
| Bluetooth max. transmission power | 10 dBm | |
| Power supply | 2 batteries 1.5 V AAA | |
| Dimensions (length x width x height) | 114 x 27 x 54 mm | |
| Weight | 152 g | |
| Scope of delivery •  1 x BB30 layer thickness measuring device (without batteries) •  1 x Extension cable for sensor •  1 x Wrist strap •  1 x Transport case •  1 x Set with calibration accessories (FE, NFE, various layer thickness samples) •  1 x Bluetooth Low Energy adapter (BLE adapter) •  1 x Quick guide •  1 x PC software |
||

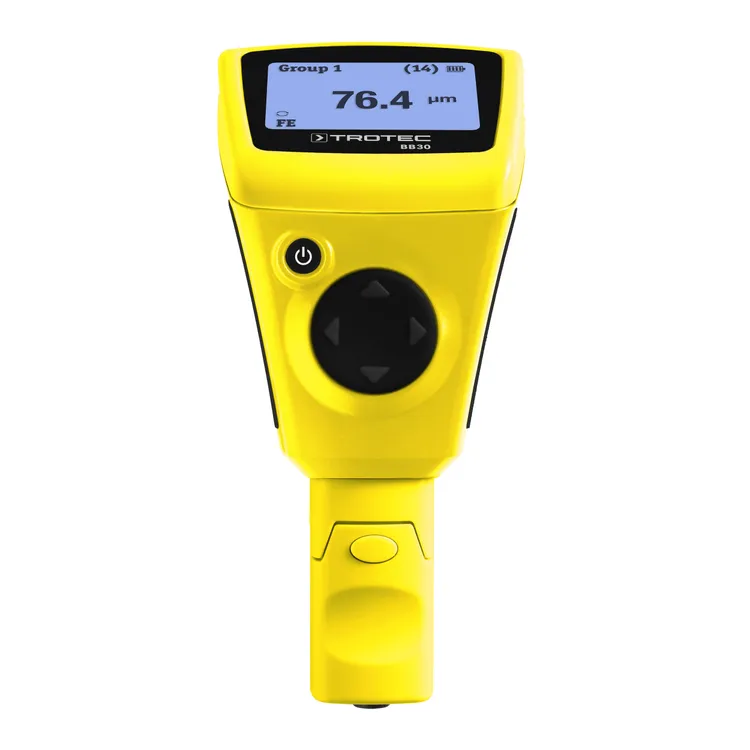

The BB30 coating thickness gauge uses an advanced dual-sensor system to measure non-magnetic coatings reliably on both ferrous and non-ferrous metals. Whether paint, varnish, galvanising, plastic coating or chrome plating – this professional handheld device delivers fast, precise and non-destructive measurement results, making it the ideal solution for vehicle inspections, industrial quality control and surface testing.
