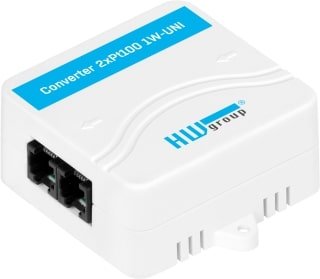

Converter 2xPt100 1W-UNI

Double converter to connect two Pt-100 and Pt-1000 probes to 1-Wire UNI (RJ11). One or two external temperature probes can be monitored over LAN Poseidon2) and GSM (Ares)
Typical applications include measuring extreme temperatures in furnaces, coolers, engines, etc.

Features

  • Input: 2x Pt-100 or Pt-1000
  • Probe connection: 2 or 3 or 4 wires
  • Electrical isolation: No
  • Options: Unit conversion, calibration
  • Interface: 1-Wire UNI (2x RJ11 for daisy-chaining)
  • Connects to: Poseidon 2250, 4002, Ares 12/14, Poseidon2
  • Environment: Converter to be installed indoors
  • Power: Bus-powered (1-Wire UNI) – max. 2 sensors per active port
  • Sensor limitations: High current consumption, max. 2 sensors per active RJ11 port. We recommend using 1-Wire hub Power
Add to quote

Description

Applications and usage

  • Accurate measurement of temperature in a wide range
  • Cooling plants with built-in temperature sensors at fixed locations
  • Large-scale measurement systems with many measuring points
  • Measuring HVAC and environment conditions in smart buildings
  • Measurement of temperature in food and crop storages
  • Industrial systems involving accurate temperature measurement
  • Temperature monitoring in pharmaceutical storages
