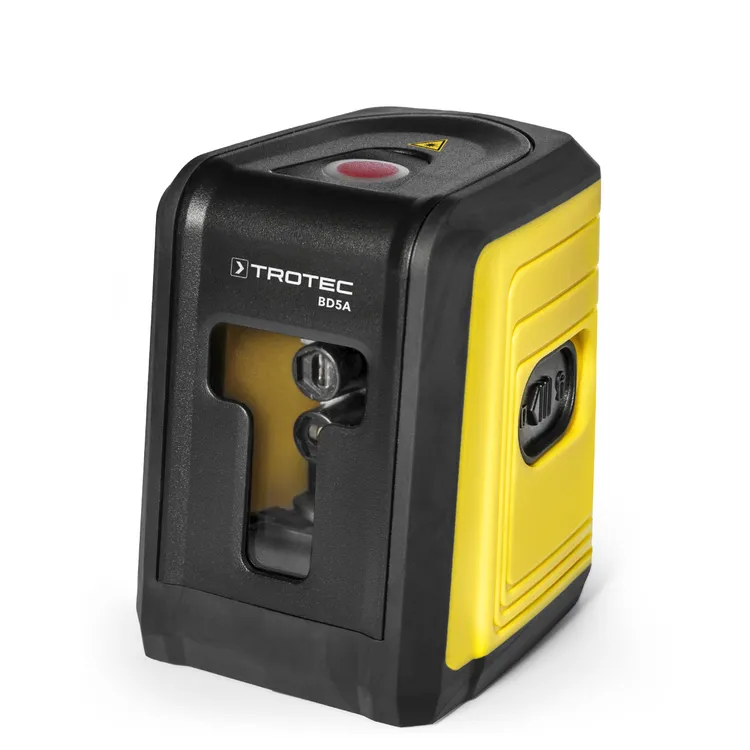

Cross Line Laser BD5A

• Multifunction LED display
• Laser class 2
• Ambient conditions from -20°C to +50°C
• Laser locking function for the projection of even angled lines

Practical details

• Projects bright laser lines over a distance of up to 10 m
• Self-levelling laser (±4°) – always automatically aligned straight
• Laser projection selectable as cross lines and horizontal or vertical single lines
• High accuracy of only ± 0.8 mm/m (at 0°)
• Ideal for quick and straight alignment of drill holes, pictures, tiles, wallpaper strips, wall cabinets, shelves, etc.
• Includes multifunctional combination holder with universal clamp plus suction cup
• State-of-the-art laser technology with ultra-easy handling
• Extremely light and ultra-compact
• Thanks to battery operation, immediately usable anywhere at any time
• Laser lock function for projecting even slanted lines
• Operating switch with transport position for secure position fixing of the laser when moving locations
• Integrated ¼-inch tripod mount

Technical details

• Inclination measurement – Auto-Leveling range: ± 4°
• Laser – Range: up to 10 m
• Laser class: 2
• Laser power < 1 mW
• Wavelength: 650 nm
• Display: multifunction LED
• Plastic housing
• Power supply: internal battery 2 x 1.5 V, AA
• Ambient conditions temperature: -20 °C to +50 °C
• Dimensions (L x W x H): 83 x 60 x 72 mm
• Weight: 275 g

Scope of delivery: device, multifunctional holding arm, quick start guide
