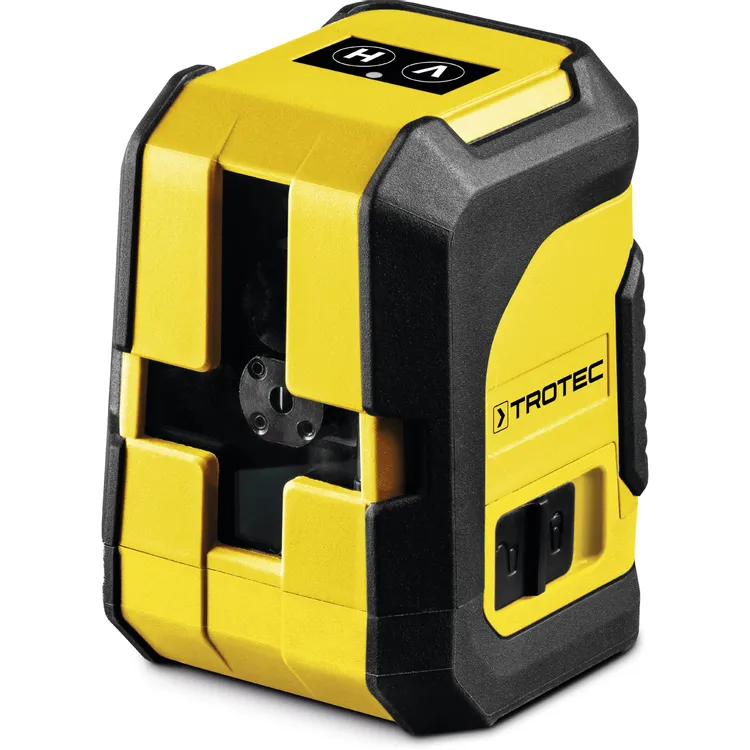

Crossline Laser BD6A

  • 3 selectable projection modes: horizontal or vertical single line and cross lines
  • Self-levelling laser
  • Automatic warning if the laser projection cannot be balanced
  • High accuracy of only ± 3 mm at a distance of 10 m
  • Easy operation

Practical advantages

  • Projects bright red laser lines up to 10 m distance
  • Three selectable projection modes: horizontal or vertical single line and cross lines
  • Laser lock function for projecting even angled lines
  • Self-levelling laser – always automatically straight on surfaces up to ± 3.5° inclination
  • Automatic warning when the surface is more steeply inclined and the laser projection cannot be compensated
  • High accuracy of only ± 3 mm at 10 m distance
  • Ideal for quick and straight alignment of drill holes, pictures, tiles, drywall, wallpaper strips, wall cabinets, shelves, etc.
  • Multifunctional combo mount with universal clamp, suction cup, and ball joints (optionally available)
  • Battery operation allows use at any time (2 x 1.5 V AA batteries)
  • Operating switch with transport position for secure position locking of the laser during relocation
  • Protection class IP54 – protected against dust and splashing water
  • Shock-resistant housing absorbs shocks from a fall height of up to 1.2 m
  • Integrated standard ¼-inch (6.35 mm) tripod mount in the housing base
  • Easy operation
Add to quote

Description

Parameter Value
Model: BD6A
Weight: 274 g
Dimensions (length x width x height): 70.4 x 62.1 x 90.5 mm
Laser accuracy: ±3 mm/10 m
Self-levelling function: 3.5° (±1°)
Range: 10 m
Laser output: <1 mW (635 nm)
Laser class: 2
Operating temperature: -10 °C to 50 °C
Resistant to drop height of: 1.2 m
Tripod 1/4 inch
Protection class IP54
Standby time 12 h
Power supply: 2 x Alkaline AA, 1.5 V batteries
Technical data
Scope of delivery
•   1 x Cross line laser BD6A
•   2 x Alkaline AA, 1.5 V batteries
•   1 x Quick guide

Work faster and more accurately with laser precision

The self-levelling crossline laser BD6A is the modern, laser-precise alternative to the classic spirit level. Compact, robust and immediately ready for use, it projects precise horizontal and vertical laser lines or a laser cross at the push of a button. With automatic levelling, three projection modes and intuitive operation, the BD6A is the ideal alignment tool for craftsmen, installers and ambitious DIY users.

The BD6A cross line laser replaces cumbersome handling with spirit level and pencil with laser-supported precision. Accurate work has never been easier!
