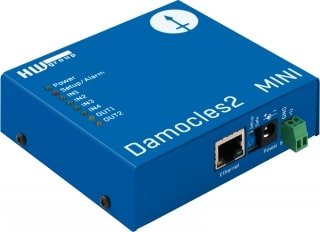

Damocles2 MINI

Damocles2 MINI provides 4 digital dry contact inputs. All digital inputs feature S0 pulse counters with a memory to connect water, gas, electricity or other meters. Damocles2 MINI controls 2 digital relay outputs (DO).

Features

  • 4x Digital Input; Data Logger for more than 250.000 records; Digital Inputs feature 32-bit S0 pulse counters that retain their value even if the power fails
  • 2x Relay Output; 8x Virtual Digital Output
  • 5x SNMP Trap; 5x E-mail; 5x “SMS+Ring” (via external GSM gateway or modem)
  • MQTT compatibility allows connecting to IoT Hub, MS Azure Bluemix Internet of Things and other cloud services.
  • ¨Connected via LAN. Configuration via built-in web server.
  • A DI state change sends an alert by e-mail, “SMS+Ring”, SNMP Trap, or activates a remote relay at another Damocles2 or Poseidon2 unit.
  • For Ring or SMS alarm use the HWg-Trigger software (external GSM modem required), or a HWg-SMS-GW3 gateway in the same LAN.
  • Virtual Digital Outputs (VDO) can be mapped to physical digital outputs (relays) of other Damocles2 or Poseidon2 units on the same LAN.
  • With the HWg-PDMS software, S0 pulses can be converted to cost per time period and exported to MS Excel.
  • Compatible with a range of third party SW (SCADA etc.). Examples for programmers on using the product are available in the HWg-SDK (Borland C++, MS Visual, VB, C#, PHP, JAVA and more).
Add to quote

Description

Damocles2 MINI – Smart Monitoring, Real-Time Protection

A built-in web server is used for configuring. The device can be monitored remotely over the internet using a SensDesk Technology portal in combination with the SensDesk Mobile application for iOS and Android. It works with HWg-PDMS and HWg-Trigger.

Damocles2 devices are designed to monitor and control digital I/O over the network using secure M2M protocols (HTTPs, IPv6, SNMPv3). With support for over 50 SNMP and SCADA applications, Damocles2 devices can be integrated in a wide range of monitoring and control systems. MQTT protocol enables integration in IoT solutions.

Applications and usage

  • Remote equipment monitoring
  • Smart buildings
  • UPS monitoring
  • Security and surveillance systems
  • Alarm indication
  • Energy consumption metering
  • Connecting external inputs to SCADA   systems
