Scope of delivery
RCA cable with audio, USB cable, mirror, hook and magnet attachment, Li-Ion battery and charger, mains adapter, headset with microphone, SD memory card, manual
Optional
| Parameter | Value |
| SKU | 3110007038 |
| Length without packaging [mm] | 267 |
| Length with packaging [mm] | 450 |
| Width without packaging [mm] | 105 |
| Width with packaging [mm] | 355 |
| Height without packaging [mm] | 60 |
| Height with packaging [mm] | 120 |
| Weight without packaging [kg] | 0.85 |
| Weight including packaging [kg] | 2.5 |
| Other dimensions | |
| Size display | 3.5 inch LCD (320 x 240 pixels) |
| Probe / camera head length [mm] | 900 |
| Camera head diameter Ø [mm] | 17 |
| Technical data | |
| Internal data memory Flash | 235 MB |
| Display type | TFT color |
| Video standard | PAL/NTSC |
| Energy | |
| Number of batteries per device | 1 |
| Conditions during operation, storage, and in the working environment | |
| Power supply | 12V Li-ion battery / 230V external adapter |
| Operation max. temperature [°C] | 45 |
| Operation min. temperature [°C] | 0 |
| Operation max. rel. humidity [%] | 85 |
| Operation min. rel. humidity [%] | 15 |
| Lighting | 4 x LED |
| Focus range min. | 10 |
| Focus range max. | ∞ |
| Video format | MPEG-4 |
| Functions and features | |
| Audio recording | Yes |
| Bendable gooseneck probe | Yes |
| Brightness control | Yes |
| Fixed focus lens | Yes |
| Image rotation | 4 x 90° |
| Multilingual menu | Yes |
| Photo recording | Yes |
| Video recording | Yes |
| Zoom function | Yes |
| Device control | |
| Keys | |
| Interface | |
| 3.5 mm jack (video/audio in/out) | |
| USB (type mini, 5-pin) | |
| Video out (composite video) | |
| Internal sensors | |
| Photo documentation [JPEG] | |
| Video documentation [MPEG] | |
| External sensors | |
| Visual signals | |
| Power supply | |
| 12V_Li_ion_akku | |
| External (power adapter) – 230 V | |
| Internal (battery) | |
| Housing design | |
| Plastics | |
| IP type of protection | |
| Label | |
| Protection towards contact | |
| Protection towards water | |
| Protection towards foreign matter | |
| Protection class Probe with measuring head | |
| Label | |
| Protection towards contact | |
| Protection towards water | |
| Protection towards foreign matter |

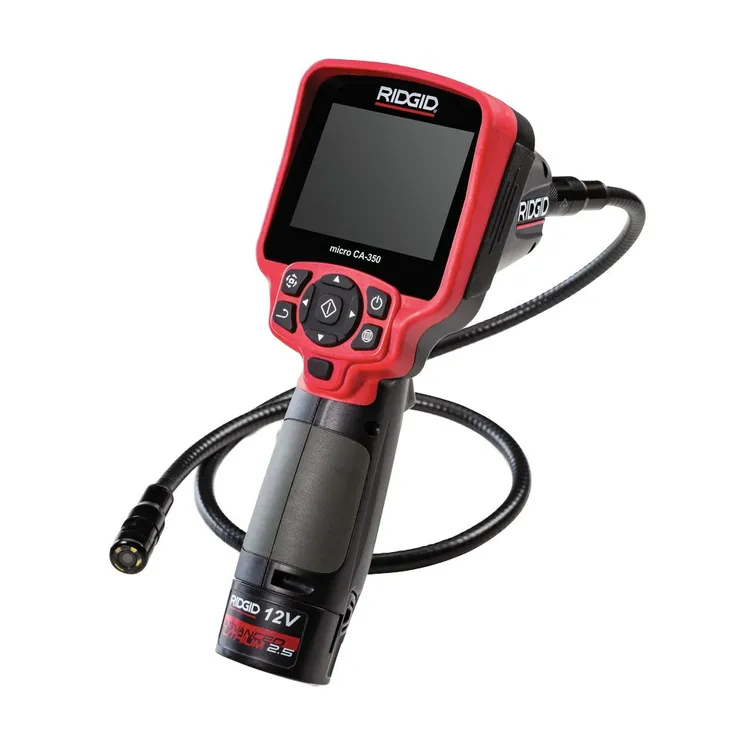

The extremely easy-to-use micro CA-350 inspection camera features an intuitive, multilingual menu and offers a wide range of innovative functions such as quad-image rotation, 2x digital zoom and stepless brightness control for precise and detailed inspections. In addition to the internal memory, an SD card slot and an integrated USB interface ensure fast, flexible data storage and transfer to a PC.
Powered by a powerful 12 V lithium-ion battery, the micro CA-350 delivers significantly longer cordless operating times than its predecessor. The standard package already includes a semi-flexible 90 cm camera probe, which can be extended up to 9 m or replaced with an optional 6 mm camera head probe. Practical accessories such as a side-view mirror, hook and magnetic attachment further expand the range of applications, making the micro CA-350 a versatile and reliable tool for professional inspections.
