Description

Technical data

• Lighting type: 4 LEDs
• Brightness control: manually adjustable
• Display: 3.5-inch TFT (320 x 240 px)
• Data memory: internal 235 MB, additional removable memory slot for SD card (max 32 GB)
• Speaker: integrated
• Microphone: integrated
• Degree of protection: IP65
• Functions: 4×90 ° image rotation function, recording of photo, video and audio, system and lighting settings
• TV-Out: PAL / NTSC
• USB: Mini-B
• Audio: 3.5mm jack
• Power supply (mains): 12V Li-ion battery
• Power supply (mains operation): 12 V mains adapter, 3 A
• Environment conditions (operation): 0 to 45 ° C
• Ambient conditions (storage): -20 to +60 ° C
• Dimensions (L x W x H): 267 x 105 x 60 mm
• Weight: 2.5 kg

Probe

• Probe type: gooseneck, semi-flexibel
• Probe length: 90 cm with optional extensions, expendable to max. 9 m
• Probe bending radius: min. 13 cm
• Probe waterproof depth: up to 3 m
• Probe protection type: IP67

Kamera

• Visibility: 10 mm bis ∞
• Camera head: ø 17 mm
• Waterproof depth: bis 3 m
• Protection type: IP67
• Image resolution (Format): 640 x 480 (JPEG)
• Frame rate: max. 30 FPS
• Video resolution (Format): 320 x 240 (MP4)
• Zoom: 2x digital zoom

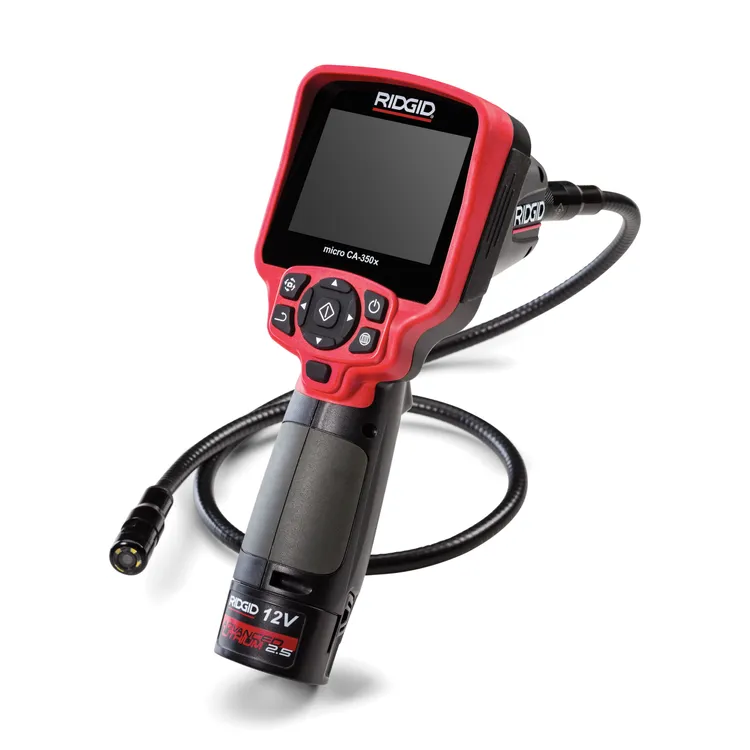

Wireless freedom. Smart features. Professional inspection – the micro CA-350x

The easy-to-use micro CA-350x inspection camera features intuitive multilingual menu navigation and a wide range of innovative functions, including quad-image rotation, dual digital zoom and stepless brightness control for precise and detailed inspections. A special highlight is the wireless live transmission of images and videos to a smartphone or tablet, which can be used as a second live display via the free app for Android and iOS using Wi-Fi and Bluetooth.

Data can be stored on an SD card or transferred quickly to a PC via the integrated USB interface. Powered by a powerful 12 V lithium-ion battery, the micro CA-350x enables significantly longer cordless operating times. The standard package includes a semi-flexible 90 cm probe, which can be extended up to 9 m or replaced with an optional ultra-slim 6 mm camera head probe. Practical accessories such as a side-view mirror, hook and magnetic attachment further expand the range of applications, making the micro CA-350x a versatile and reliable tool for professional inspections.
