Name: Energy Cost Meter BX09 UK - Plug Type G | Free Shipping
Price: 54.45 AED
Availability: InStock

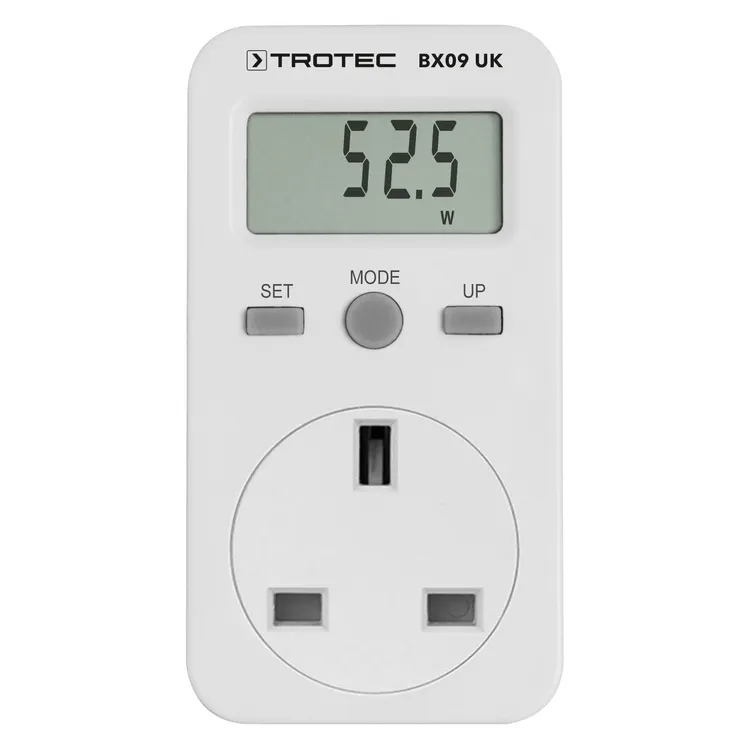

Energy Cost Meter BX09 UK – Plug Type G

BX09 UK variant with a different power plug. Plug type G.

Power consumption display in watts, kWh, price, or cost per kWh

Quick and easy measurement of energy requirements

Display of standby consumption from 0.1 W

Connection of a multi-socket outlet with several devices possible

Practical advantages

Quick and easy measurement of energy consumption

Power consumption display in watts, kWh, price or cost per kWh

Optimal price-performance ratio

Minimum possible power display 0.1 W

Buffer capacitor for storing selected settings

Display of standby consumption from 0.1 W – not possible with many competing products

Display of current power consumption of one or more devices

Display of total energy consumed within a specified period – simply programme the electricity price, plug the BX09 between device and socket

Connection of a multi-socket with several devices possible

Easy-to-read and user-friendly LCD display

Power failure protected

Please note that this item is the UK version with a different power plug. Plug type G.

Description

Technical data

Master Data
item number	3510205917
Length without packaging [mm]	95 mm
Length with packaging [mm]	205 mm
Width without packaging [mm]	51 mm
Width with packaging [mm]	107 mm
Height without packaging [mm]	70 mm
Height with packaging [mm]	75 mm
Weight without packaging [kg]	0.1 kg
Weight including packaging [kg]	0.12 kg
Conditions during operation, storage, and in the working environment
Operation – max. temperature [°C]	40
Operation – max. rel. Humidity [%]	85
Operation – min. temperature [°C]	5
Electricity
Recording capacity [h]	9999.9
insulation	Protection class I
Voltage [V, AC]	230
Power frequency [Hz]	50 / 60
Features and equipment
Power consumption display as active power in watts
Consumption display of the tariff service
power failure-proof
liquid crystal display
internal sensors
Power [W]
energy supply
via mains voltage
junction box
BS 1363 (type G socket)
conformity
Pollution degree 2
EN 61010-1
EN 61326-1
measurement circuit category
CAT II (2,500 V)
housing design
plastic
connector plug
Designation
IP Protection Rating
Label
Protection towards contact
Protection towards water
Protection towards foreign matter
measurement_specifications
Measured parameter	Measuring range	Resolution	Accuracy
Consumption measurement	0,01 kWh – 9.999,9 kWh
Power [W]	0,1 W – 2990 W
AC voltage [V/AC]	230 V

See at a glance which appliances are real power guzzlers

Which electrical device in your home or office uses how much energy? The BX09 UK energy cost meter (Plug Type G) answers this question quickly, reliably and at an excellent price-performance ratio. With a minimum display resolution of just 0.1 W, the meter even tracks down hidden power consumers such as devices in standby mode. Simply plug the BX09 UK between the wall socket and the appliance to be tested, and it immediately shows the current power consumption. The display can show values as active power in watts, energy consumption in kWh, electricity costs or cost per kWh. Whether TVs and hi-fi systems, computers and servers, refrigerators and freezers, washing machines and dryers, air conditioners, heaters or lighting – the BX09 UK helps you identify energy wasters and reduce your electricity costs effectively.
