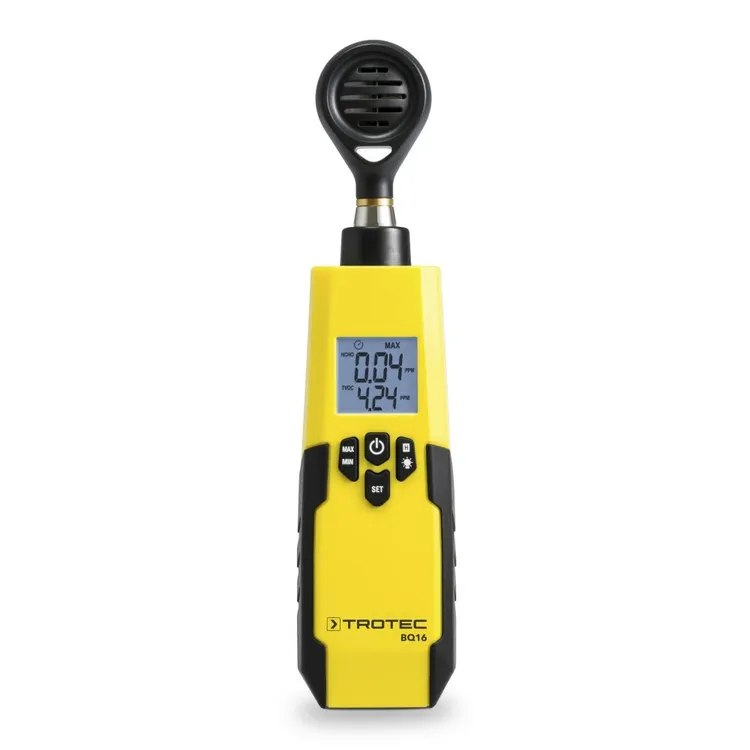

HCHO / TVOC Measuring Device BQ16

  • Compact air quality measuring device for detecting formaldehyde and VOC concentrations in indoor air
  • Measurement determination in ppm or mg/m³
  • Dual real value display for HCHO and TVOC
  • MIN, MAX and Hold function
  • Illuminated display

Advantages for practical use

  • Development, design, manufacturing: 100% Trotec
  • Compact air quality measuring device for detecting formaldehyde and VOC concentrations in indoor air
  • Measurement values displayed in ppm or mg/m³
  • Dual real-time display for HCHO and TVOC
  • MIN, MAX, and Hold functions
  • Illuminated display
  • Automatic shut-off

Practical details

  • Measurement range HCHO: 0.00 – 5.00 mg/m³
  • Measurement range TVOC: 0.00 – 9.99 mg/m³
  • Dimensions (L x W x H): 230 x 55 x 35 mm
  • Weight: 205 g
  • Max, Min, Hold, Auto-Off function
  • Backlit display
  • Display in both PPM and mg/m³
Add to quote

Description

Parameter Value
Model BQ16
Dimensions
(length x width x height)
230 mm x 55 mm x 35 mm
Weight 205 g
HCHO (formaldehyde)
Measuring range 0.00 to 5.00 PPM
0.00 to 5.00 mg/m3
Resolution 0.01 PPM
0.01 mg/m3
Accuracy ±5 % FS*
TVOC (volatile organic compounds)
Measuring range 0.00 to 9.99 PPM
0.00 to 9.99 mg/m3
Resolution 0.01 PPM
0.01 mg/m3
Accuracy ±10 % FS*
Operating conditions 0 °C to +50 °C with
< 80 % RH
Storage conditions -10 °C to +60 °C with
< 80 % RH
Display Backlit LC display
Battery 9 V battery
Automatic switch-off 15 min if automatic switch-off is activated

See what’s in your air – and keep it healthy

The BQ16 makes invisible indoor air pollutants visible by measuring formaldehyde (HCHO) and volatile organic compounds (TVOC) simultaneously in real time. With high sensitivity from just 0.01 ppm or 0.01 mg/m³, it reliably detects even the smallest pollutant concentrations and helps ensure a healthy indoor environment in homes, offices, schools, and public buildings. Thanks to its easy operation, backlit display, switchable units (ppm / mg/m³), and practical MIN, MAX and HOLD functions, the BQ16 offers precise, convenient and trustworthy air quality monitoring at the push of a button.
