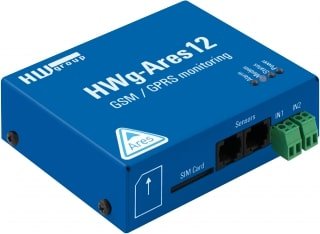

HWg-Ares 12

Ares 12 is an industrial unit for remote monitoring and alarming over GSM for locations without LAN access. Includes battery backup. Connect up to 14 external sensors and 2 dry contact detectors.

Features

  • 14x 1-Wire UNI/1-Wire Input; 2x Digital Input with S0 pulse counters; Data Logger for more than 250.000 recordss; Digital Inputs feature 32-bit pulse counters that retain their value even if the power fails
  • 5x E-mail; 5x “SMS+Ring”
  • Internal battery provides back-up power for up to 24 hours.
  • Use the USB interface to configure the device from a PC with no need to install any additional software. Remote configuration also possible via the “AresConf” tab in the SensDesk portal.
  • Remote firmware upload (FOTA) capability makes Ares devices ideal for large-scale deployments.
  • Connected via GSM/GPRS.List of APN available worldwide.
  • A sensor value out of a set safe range as well as a DI state change sends an alert by e-mail or “SMS+Ring”, or activates a relay (via connected accessory “Relay Output 1-Wire UNI”).
  • Data can be sent in e-mail attachments or downloaded via USB.
  • With the HWg-PDMS software, S0 pulses can be converted to cost per time period and exported to MS Excel.
  • Compatible with a range of third party SW (SCADA etc.). Examples for programmers on using the product are available in the HWg-SDK (Borland C++, MS Visual, VB, C#, PHP, JAVA and more).
Add to quote

Description

Industrial Monitoring with GSM & LTE Connectivity

Ares monitors the readings of connected sensors. When a value reaches the alarm threshold, the device sends an e-mail or a text message (SMS), or dials specified numbers. Use SensDesk Technology portal to view measured data in a complex dashboard.

Ares products support FOTA (Firmware Over The Air) for remote firmware updates.

Applications and usage

  • GPRS monitoring of machines and their  environment
  • ATMs – environment monitoring without tampering with the  connection
  • Art exhibits and  depositories
  • Storages of food or  materials
  • Cooling systems and coolers
