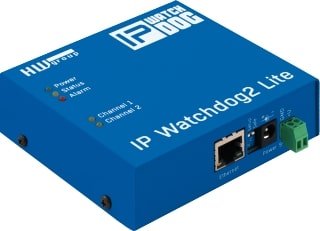

IP WatchDog2 Lite – Simple Network Monitoring with Automatic Reboot

Device Failure Detection – 4 + 1 Methods

• Outgoing PING: IP WatchDog2 sends PING requests periodically.
• Incoming PING: IP WatchDog2 waits for a PING from the monitored device (heartbeat).
• WWW page request (Web client): IP WatchDog2 checks if a defined web page on the external device is accessible.
• WWW page (Web server): IP WatchDog2 waits for a request from the external device for its internal web page.(heartbeat).
• Manual reboot: A human operator can manually reboot the channel (output).

Outputs and Channels

• 2 Physical DO (relay) Outputs  on the device / 12 Detection Channels
• 12 channels for failure detection are available in single IP WatchDog2 Lite device
• One IP WatchDog2 can restart or power cycle 2 physical devices (2x DO with 50V max  NO/NC relay).
• Other channels can detect a failure state and reboot remote Virtual Outputs (external Poseidon2 or Damocles2 devices).
