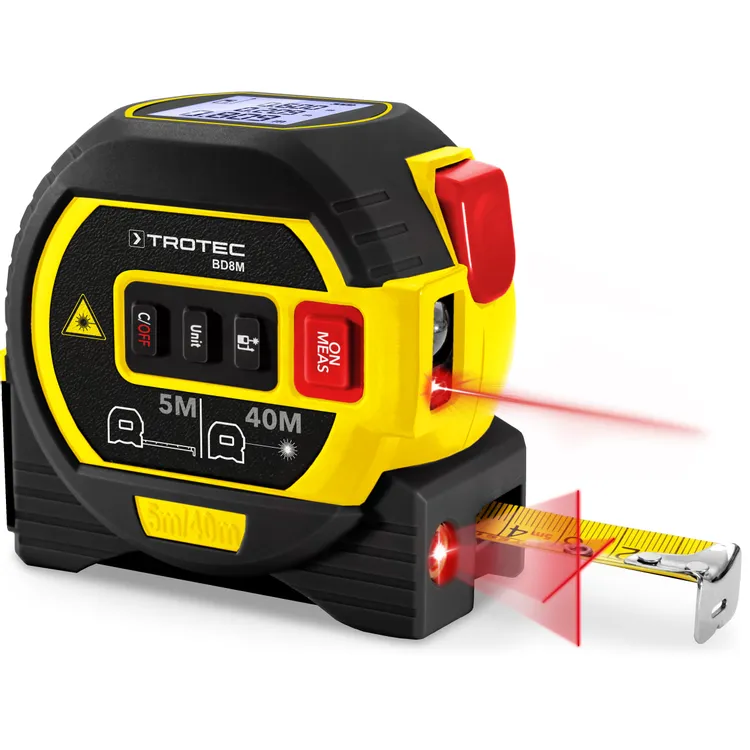

Laser distance measurer BD8M

  • Indirect distance and height or partial height calculation
  • Measurement of distances, areas and volumes
  • Integrated cross-line laser

Advantages for practical use

  • 0.05 m to 40 m laser distance measurement
  • Indirect distance and height or partial height calculation (3-point Pythagoras functions)
  • Precise and lightning-fast measurement of distances, areas and volumes
  • Integrated cross line laser (10 m range)
  • Integrated tape measure (5 m length)
  • Backlit multi-line display
  • Continuous measurement mode with MIN-/MAX-function
  • Addition and subtraction of measurement results
  • Automatic storage of the last 20 measurements
  • Robust construction for rough construction site use
  • Battery status indicator
  • Power-saving automatic switch-off
Add to quote

Description

Parameter Value
Model BD8M
Weight 295 g
Dimensions (H x W x D) 85 x 82 x 56 mm
Measuring range of tape measure 0 to 5 m
Measuring range of laser 0.20 to 40 m
0.66 to 131 ft
Measuring units m/ft/in/ft+in
Accuracy ± 2 mm
Measuring range resolution 1 mm
Range of cross line laser 10 m
Number of recordings logged in the history 20
Operating temperature 0 °C to 40 °C
(32 °F to 104 °F)
Storage temperature -10 °C to 60 °C
(14 °F to 140 °F)
Laser output < 1 mW (650 nm)
Laser class II
Device switch-off After approx. 2 minutes of non-use
Laser/display illumination switch-off After approx. 30 seconds of non-use
Power supply 2 x 1.5 V battery (type AAA)
No. Indication Function
14 Indirect measurement Indirect measurement (two auxiliary measurements)
Indirect measurement (three auxiliary measurements)
15 Space
Area measurement
Volume measurement
16 History history of measured values opened
17 Battery status indicates the battery charge level
18 Measured value 1 first measured value/maximum value
19 Measured value 2 second or third measured value/ minimum value
20 Lower measured value display last measured value/result of a calculation
21 +/- Addition/subtraction of measured values
22 Reference point
Front reference point
Rear reference point
23 Laser Laser active
Scope of delivery
•   1 x Device BD8M (without batteries)
•   1 x Quick guide

Three measuring tools. One smart solution

The BD8M combines laser distance meter, tape measure and cross line laser in one compact device – making it the perfect all-in-one measuring solution for craftsmen, architects, interior designers and ambitious DIY users. With precise laser measurements up to 40 m, integrated alignment laser and 5 m tape measure, the BD8M handles almost every measuring, calculating and positioning task quickly, accurately and conveniently.
