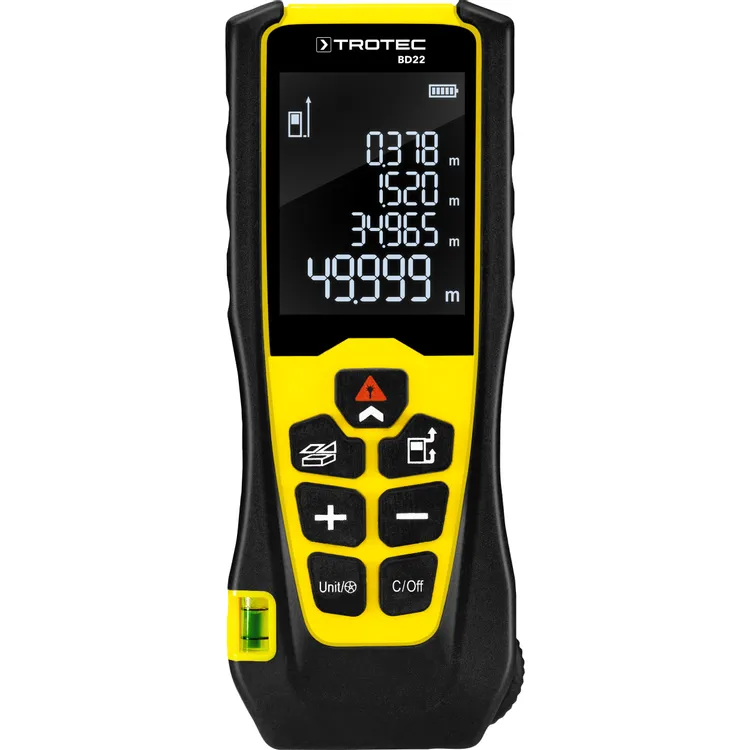

Laser Distance Meter BD22

  • Indirect distance and height or partial height calculation
  • Measurement of distances, areas and volumes
  • Integrated measuring wheel for measuring curved lines, bends, and circumferences of circles

Benefits for practical use

  • Distance measurement from 0.05 m to 50 m
  • Indirect distance and height or partial height calculation (3-point Pythagoras functions)
  • Precise and lightning-fast measurement of distances, areas and volumes
  • Integrated measuring wheel for measuring curved lines, curves and circumferences (measuring range 0 to 10 m)
  • Integrated spirit level bubble for precise alignment
  • Backlit multi-line display
  • Continuous measurement mode with MIN/MAX function
  • Addition and subtraction of measurement results
  • Automatic storage of the last 50 measurements
  • Robust construction for tough construction site use
  • Measurement from front and back edge
  • Battery status indicator
  • Power-saving automatic switch-off
Add to quote

Description

Parameter Value
Model BD22
Weight 128.5 g
Dimensions (H x W x D) 130 x 51 x 28 mm
Measuring range of laser 0.05 to 50 m /
0.164 to 164 ft
Measuring range measuring wheel 0 to 10 m
Measuring units m/ft/ft+in
Accuracy ± 2 mm
Measuring range resolution 1 mm
Number of recordings logged in the history 50
Operating temperature 0 °C to 40 °C
Storage temperature -10 °C to 60 °C
Relative humidity max. 75 %
Laser output < 1 mW (630-670 nm)
Laser class II
Device switch-off After approx. 3 minutes of non-use
Automatic switch-off of the laser After approx. 30 seconds of non-use
Power supply 2 x 1.5 V battery (type AAA)
No. Indication Function
14 Battery status indicates the battery charge level
15 Space Area measurement
Volume measurement
16 Trapezium Trapezoidal measurement
17 Measured value 1 Detailed measured value with unit: Maximum measured value/
Partial measured values for calculations
18 Measured value 2 Detailed measured value with unit: Minimum measured value/
Partial measured values for calculations
19 Measured value 3 Detailed measured value with unit: Partial measured values for calculations
20 Measurement value display Last measured value/ result of a calculation
21 +/- Addition/subtraction of measured values
22 Memory space Current memory space
23 MAX/MIN MAX: Maximum measured value is displayed
MIN: Minimum measured value is displayed
24 Reference point Front reference point
Rear reference point
25 Laser Laser active

Maximum versatility in one device – laser distance meter, measuring wheel and spirit level

The BD22 is an easy-to-use yet highly functional laser distance meter that combines precise laser measurement with a built-in measuring wheel and integrated spirit level in a compact, lightweight device weighing only 130 g. It measures distances, areas and volumes up to 50 m with high accuracy and also features a Pythagoras function for indirect height measurements and a timer for delayed measurements. The integrated measuring wheel enables the measurement of curves, lines and circumferences, making the BD22 an extremely versatile tool for architects, engineers, craftsmen and ambitious DIY users. With its robust, rubberised housing, backlit multi-line display, memory for up to 50 measurements, MIN/MAX function and intelligent automatic switch-off, the BD22 offers professional measuring technology at an outstanding price-performance ratio and is ideally suited for everyday use on construction sites and in renovation work.
