| Parameter | Value |
| Model | TD120 |
| Weight | 110 g |
| Dimensions (H x W x D) | 115 x 48 x 29 mm |
| Measuring range of laser | 0.05 to 120 m / 0.2 to 394 ft°* |
| Measuring units | m/in/ft/ft+in |
| Accuracy | ± 2 mm |
| Measuring range resolution | 1 mm |
| Tilt sensor measuring range | max. 90° |
| Tilt sensor accuracy | ±0.5° |
| Number of recordings logged in the history | 99 |
| Operating temperature | -10°C to 50°C (14°F to 122°F) |
| Storage temperature | -20°C to 60°C (-4°F to 140°F) |
| Relative humidity | max. 75 % |
| Laser output | < 1 mW (635 nm) |
| Laser class | II |
| Type of protection | IP40 |
| Device switch-off | After approx. 3 minutes of non-use |
| Automatic switch-off of the laser | After approx. 30 seconds of non-use |
| Power supply | 2 x 1.5 V battery (type AAA) |
| Technical data * A target plate is recommended for distances > 30 m. Scope of delivery • 1 x Device TD120 (without batteries) • 1 x Quick guide |

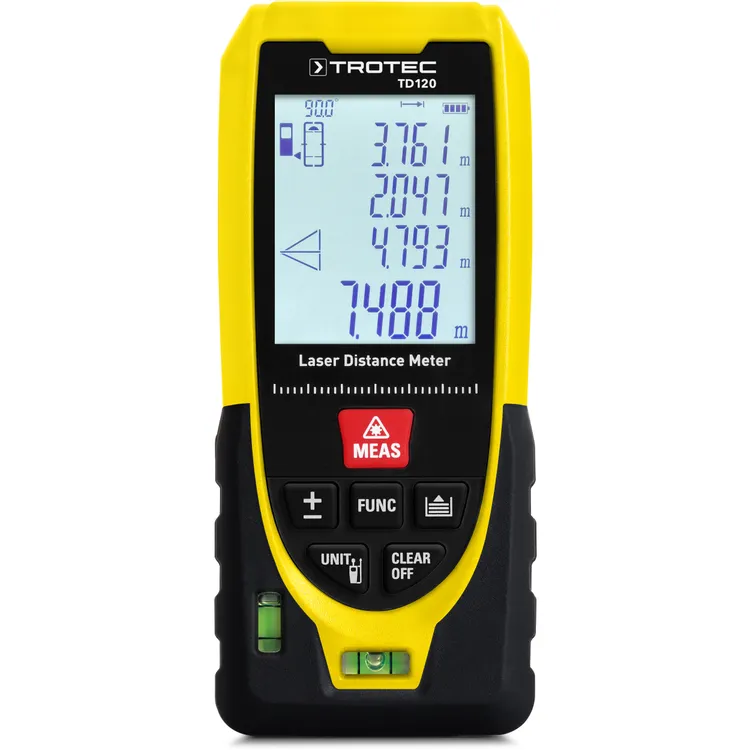

Robust, compact and highly functional, the TD120 is the ideal laser distance meter for cost-conscious users with professional ambitions. Despite its attractive price, it offers true professional features such as a 360° inclination sensor, digital spirit level and additional horizontal and vertical bubble levels, enabling precise angle, height and indirect measurements even over obstacles. With a measuring range of up to 120 metres, the TD120 quickly and reliably measures distances and also calculates areas and volumes using integrated 2-point and 3-point Pythagoras functions. The clear multi-line display, memory for up to 99 measurements and selectable reference points make everyday work especially convenient. Thanks to its robust, site-suitable design and comprehensive range of functions, the TD120 is an indispensable measuring tool for architects, surveyors, craftsmen and all professionals who need to measure distances, areas and volumes accurately and efficiently.
