| Parameter | Value |
| Model | TD200 |
| Weight (incl. batteries) | 190 g |
| Dimensions (H x W x D) | 130 x 54 x 28 mm |
| Measuring range of laser | 0.05 m to 200 m / 2 in to 656 ft |
| Display | 3-inch HD colour display |
| Measuring units | m/mm/ft/in/ft+in |
| Accuracy | ±2.0 mm + 5 x 10-5 D |
| Measuring range resolution | 1 mm |
| Reference point at measuring device | front/rear/tripod |
| Number of recordings logged in the history | Max. 1000 |
| Number of storable screenshots | Max. 100 |
| Operating temperature | 0 °C to 40 °C 32 °F to 104 °F |
| Storage temperature | -10 °C to 60 °C |
| Relative humidity | max. 90 % |
| Laser output | < 1 mW (630-670 nm) |
| Laser class | II |
| Device switch-off | After approx. 3 minutes of non-use |
| Automatic switch-off of the laser | After approx. 30 seconds of non-use |
| Protection class | IP 65 |
| USB port | Micro USB |
| Power supply | 3 x 1.2 V rechargeable batteries (type AAA) |
| Wireless charging | 5 V, 1 A/5 A |

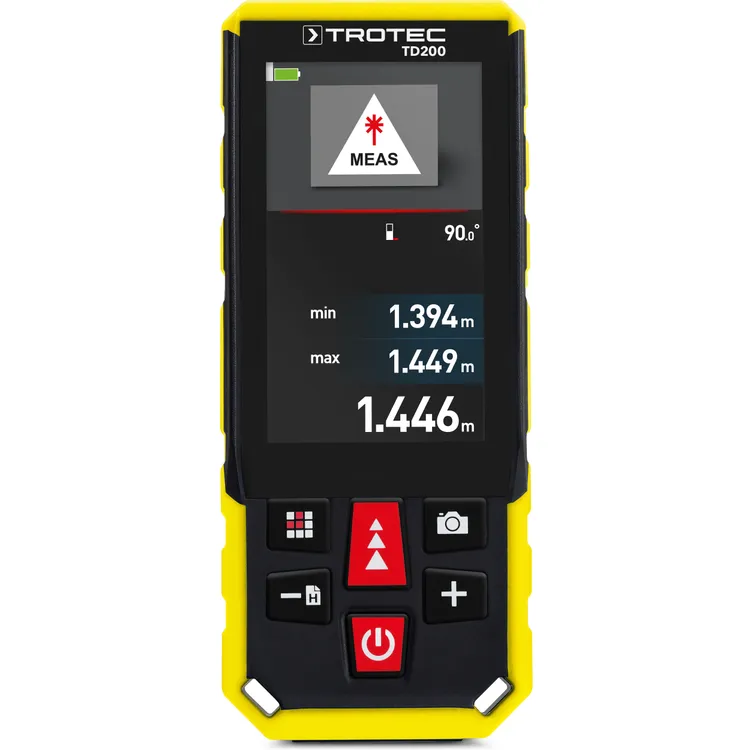

The 3x zoom digital camera with target finder function enables precise long-distance measurements up to 200 metres – even under poor lighting conditions. This feature of the TD200 is particularly advantageous outdoors. The target finder always marks the target exactly in the crosshairs on the display, even if the red laser dot on the target is no longer visible to the human eye.
The TD200 is Trotec’s professional flagship laser distance meter, designed for uncompromising daily use on construction sites. Its extremely robust IP65 housing is dust-tight, splash-proof and impact-resistant, making it easy to clean even under running water and able to withstand drops from up to 1 metre. With a measuring range of up to 200 m and 15 measuring modes, the TD200 masters virtually every measuring task – from direct and indirect distance and height measurements to the calculation of areas, partial distances and volumes. The patented combination of a 3x zoom camera with automatic target finder and a precise 360° tilt sensor enables accurate long-distance measurements and applications that are difficult or impossible with conventional devices. Featuring Bluetooth, large memory for measurements and screenshots, automatic display rotation, selectable reference points, digital spirit level, self-timer and inductive charging, the TD200 combines outstanding performance, intelligent features and excellent value for money in one compact professional tool – the first choice for surveyors, architects and demanding craftsmen.
