Hear leaks before they become visible
The LD6 listening device enables fast and reliable checking of pipes and fittings for leak noises. Its high-sensitivity vibration sensor combined with powerful amplifier technology detects even the smallest structure-borne sound waves. At the touch of a button, high or low frequencies can be filtered to ensure optimal results on both metallic and non-metallic pipes. Thanks to cordless Bluetooth transmission to the headphones, operation is particularly convenient and flexible. For measurement, the LD6 can be placed directly on pipes, fittings or floors using the measuring tip or the supplied accessories. If a leak is present, the characteristic noise becomes clearly audible, while the integrated level display also shows the intensity of the detected signal.

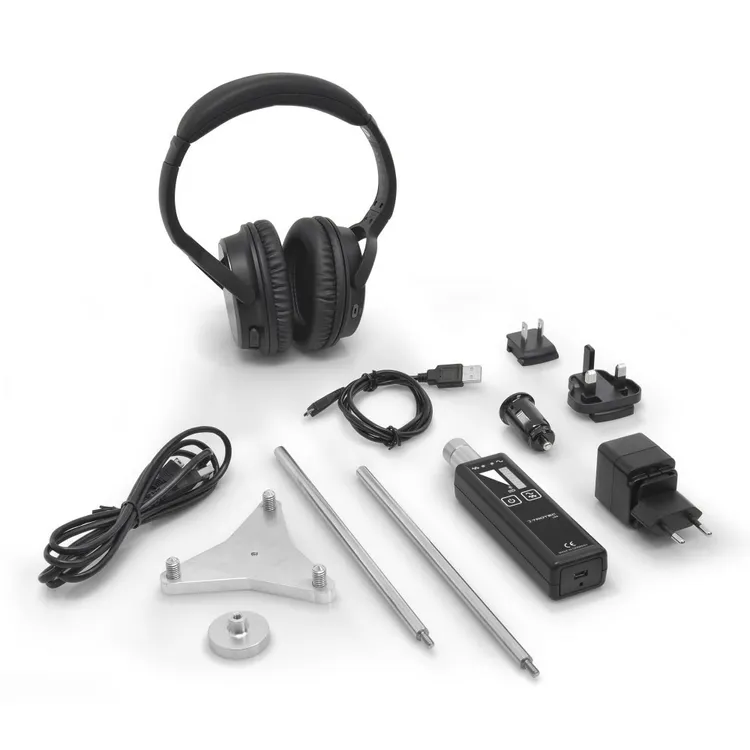

Included in delivery
Benefits for practice
| Parameter | Value | |
| Bluetooth version | Version 4.0 class 2 | |
| Bluetooth frequency range | 2,402 to 2,480 GHz | |
| Supported Bluetooth profiles | A2DP, AVRCP, HSP, HFP | |
| Supported codecs | SBC (subband codec) | |
| Range | Up to 10 metres in an open area without obstructions | |
| Power supply | Li-ion battery | |
| Battery capacity | 250 mAh | |
| Battery charging voltage | 5 V (Micro USB) | |
| Battery charging time | approx. 2 h to 3 h | |
| Battery operating time per charge | approx. up to 10 h at medium volume | |
| Operating conditions | -10 °C to +40 °C | |
| Storage conditions | -10 °C to +40 °C | |
| Audio input | DC3.5 female | |
| Dimensions (length x width x height) | 210 x 170 x 50 (mm) | |
| Weight (headphones only) | 180 g | |
| No. | Designation | |
| 10 | Volume control (V+ / V-) | |
| 11 | Micro USB port | |
| 12 | Power button | |
| 13 | AUX port | |
| 14 | Headphone LED (blue / red) | |
| Parameter | Value | |
| Signal input connection | Bluetooth (for supplied headphones) | |
| Bluetooth frequency range | 2,402 to 2,480 GHz | |
| Bluetooth max. transmission power | +1.5 dB | |
| Level indication | LED bar graph, 8 levels | |
| Acoustic rendition | Noise-cancelling BT headphones | |
| Frequency range | 0 Hz to 5000 Hz | |
| Power supply | NiMH battery | |
| Battery capacity | 1000 mAh | |
| Battery charging voltage | 5 V (Micro USB, min. 500 mA) | |
| Battery charging time | approx. 4 h to 6 h | |
| Battery operating time per charge | approx. 8 h to 10 h | |
| Operating conditions | -10 °C to +50 °C | |
| Storage conditions | -20 °C to +60 °C | |
| Dimensions (length x width x height) |
114 x 35 x 25 (mm) | |
| Weight (device only) | 210 g (measuring device) | |
