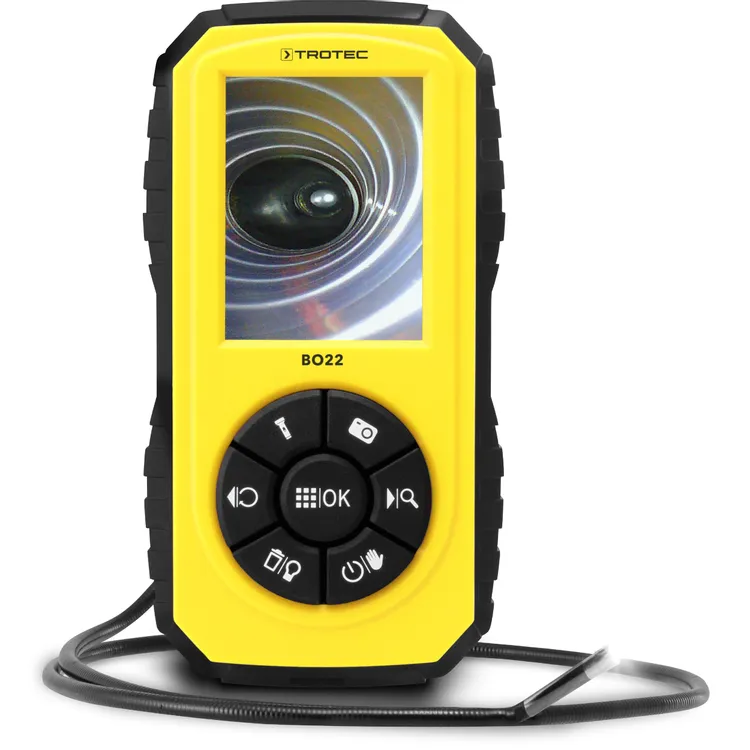

Mini videoscope BO22

Advantages for the practice

  • 3 inch digital LCD colour display
  • 95 cm long, semi-flexible and bendable gooseneck probe (Ø 5.5 mm)
  • Waterproof to IP67 (gooseneck probe and camera head) for underwater use
  • Includes 3-piece accessory set with 45° mirror, hook and magnet attachment
  • Still image, photo and video mode
  • High quality camera with a resolution of 1280 x 720 px
  • Recording of photos and videos – with inserted Micro-SD card with up to 32 GB also storable
  • 6-fold LED light on camera head with 4 brightness levels
  • LED light in housing (flashlight function)
  • Compact probe rewind
  • Flip function for 180° image rotation
  • 3x zoom
  • Depth of field 1 cm to 30 cm, field of view 65
  • Date and time display
  • Rugged construction
  • Wireless battery operation for mobile, mains-independent use
  • Battery status display
  • Protective transport bag
  • Simple intuitive operation
  • Trotec brand quality



Add to quote

Description

Parameter Value
Model BO22
Weight (incl. batteries) approx. 385 g
Dimensions
(length x width x height)		 162 mm x 85 mm x 35 mm
Display 3.0 inch digital LC colour display
Memory on microSD card (up to 32 GB, min. 6 MB/s, not included in the scope of delivery)
Resolution 640 x 480 pixels
Video format AVI
Video resolution 1280 x 720 pixels
Photo format JPG
Camera diameter 5.5 mm
Length of the gooseneck probe 95 cm
Depth of field approx. 1 cm to 30 cm
Field of vision 65°
Zoom 1.0/1.5/2.0-fold zoom
Operating temperature -10 °C to 60 °C
Storage temperature -10 °C to 60 °C
Type of protection (gooseneck probe and camera head) IP67
Power supply 4 batteries, LR06 AA 1.5 V
Scope of delivery
•   1 x Device BO22
•   1 x Accessory kit with 45° mirror, hook and magnet attachment
•   1 x Quick guide
Technical data
No. Element Function
1 Display camera image or menu indication
2 MicroSD card
indication		 indicates whether a microSD card is inserted
3 Battery status
indication		 flashes red if batteries need to be replaced
4
button
starts recording pictures or videos
5
button
runs menu function runs indicated submenu confirms input value
6
button
up button for the menu zoom function
7
button
POWER button freeze image
8 MicroSD card recording insert MicroSD card up to 32 GB
9
button
deletes data
activates camera light (4 levels)
10
button
down button for the menu
180° image rotation (flip function)
11
button
activates rear light
12 Date and time
indication		 settings are made via menu function
13 Rear light additional object lighting
14 Gooseneck probe with camera head and lamp, extendable by 95 cm
15 Battery compartment 4 batteries, LR06 AA 1.5 V

See what’s hidden – quickly, precisely and even under water

With the BO22 mini videoscope, you can inspect hidden, hard-to-reach or enclosed areas easily and without disassembly. The compact camera probe with a diameter of just 5.5 mm transmits sharp, full-colour live images directly to the 3-inch display – even under water thanks to its IP67 waterproof camera head. Whether in pipes, cavities, machines, vehicles or cable ducts, the BO22 makes damage, blockages, wear or foreign objects visible in seconds. This saves time, avoids unnecessary dismantling and enables fast, targeted inspection for maintenance, troubleshooting and repair – both for professionals and ambitious home users.
