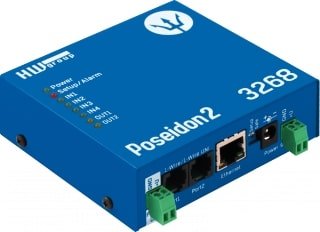

Poseidon2 3268

Poseidon2 3268 supports up to 8 sensors connected over 1-Wire UNI / 1-Wire and up to 4 detectors connected to digital inputs. Poseidon2 3268 can control 2 digital NO/NC relay outputs, as well as up to 8 virtual digital outputs (VDO) at remote Poseidon2 or Damocles2 units (M2M).

Features

  • 8x 1-Wire UNI/1-Wire Input; 4x Digital Input; Data Logger for more than 250.000 records; Digital Inputs feature 32-bit S0 pulse counters that retain their value even if the power fails
  • 2x Relay Output NO/NC; 8x Virtual Digital Output
  • 5x SNMP Trap; 5x E-mail; 5x “SMS+Ring” (via external GSM gateway or modem)
  • MQTT compatibility allows connecting to IoT Hub, MS Azure, Bluemix Internet of Things and other cloud services.
  • Connected via LAN. Configuration via built-in web server.
  • A sensor value out of a set safe range as well as a DI state change sends an alert by e-mail, SMS, SNMP Trap, or activates a remote relay at another Poseidon2 of Damocles2 unit.
  • For Ring or SMS alarm use the HWg-Trigger software (external GSM modem required), or a HWg-SMS-GW3 gateway in the same LAN.
  • Virtual Digital Outputs (VDO) can be mapped to physical digital outputs (relays) of other Poseidon2 or Damocles2 units on the same LAN.
  • With the HWg-PDMS software, S0 pulses can be converted to cost per time period and exported to MS Excel.
  • Compatible with a range of third party SW (SCADA etc.). Examples for programmers on using the product are available in the HWg-SDK (Borland C++, MS Visual, VB, C#, PHP, JAVA and more).
Add to quote

Description

Poseidon2 3268 – Total Visibility for Critical Environments

A built-in web server is used for configuring. The device can be monitored remotely over the internet using any SensDesk Technology portal in combination with the SensDesk Mobile application for iOS and Android. It works with HWg-PDMS and HWg-Trigger.

Poseidon2 devices are designed to monitor and control sensors and digital I/O over the network using secure M2M protocols (HTTPs, IPv6, SNMPv3). With support for over 50 SNMP and SCADA applications, Poseidon2 devices can be integrated in a wide range of monitoring and control systems. MQTT protocol enables integration in IoT solutions.

Applications and usage

  • Temperature alarms and a thermostat in IT
  • Switching HVAC / ventilation in a cabinet
  • Remote I/O control and monitoring over the Ethernet
  • Surveilance systems
  • Industrial applications
  • Cooler and freezer monitoring + alarm indication
  • Temperature and other measurements in a cloud
  • Online web portal + mobile app
  • Smart buildings
