Description
Technical data
| Indication | Function | ||||
| Measurement value display | Last measured value/ result of a calculation | ||||
| Space |
|
||||
|
|||||
| Counter | Current timer/ number of the saved measured value displayed in Detail C (27) |
||||
| Vertical | Vertical measuring distance is displayed | ||||
| Indirect measurement | Indirect measurement (two auxiliary measurements) | ||||
| Indirect measurement (three auxiliary measurements) | |||||
| Reference point |
|
||||
|
|||||
| Reference point at the end of the end piece | |||||
| Laser | Laser active | ||||
| Value | |||||
| Model: | BD21 / BD26 | ||||
| Weight: | 150 g | ||||
| Dimensions (H x W x D): | 118 x 49 x 27 mm | ||||
| Measuring range: | BD21: 0.05 to 70 m BD26: 0.05 to 120 m |
||||
| Accuracy: | ±2 mm* | ||||
| Measuring range resolution: | 1 mm | ||||
| Horizontal measuring range: | ±90° | ||||
| Horizontal measuring range accuracy: | ±0.3° | ||||
| Number of recordings logged in the history: | 10 | ||||
| Type of protection: | IP41 | ||||
| Operating temperature: | 0 °C to 40 °C | ||||
| Storage temperature: | -20 °C to 70 °C | ||||
| Laser output: | < 1 mW (620–690 nm) | ||||
| Laser class: | II | ||||
| Laser point Ø | 10 m distance: 6 mm 50 m distance: 30 mm 100 m distance: 60 mm |
||||
| Power supply: | 2 x Alkaline LR03 AAA batteries | ||||
| Automatic switch-off of the device: | After approx. 3 minutes of non-use | ||||
| Automatic switch-off of the laser: | After approx. 30 seconds of non-use | ||||
| *under favourable conditions (good target surface, room temperature) up to 10 m | |||||
| Scope of delivery • 1 x Laser distance measuring device (without batteries) • 1 x Device bag • 1 x Wrist strap • 1 x Quick guide |
|||||

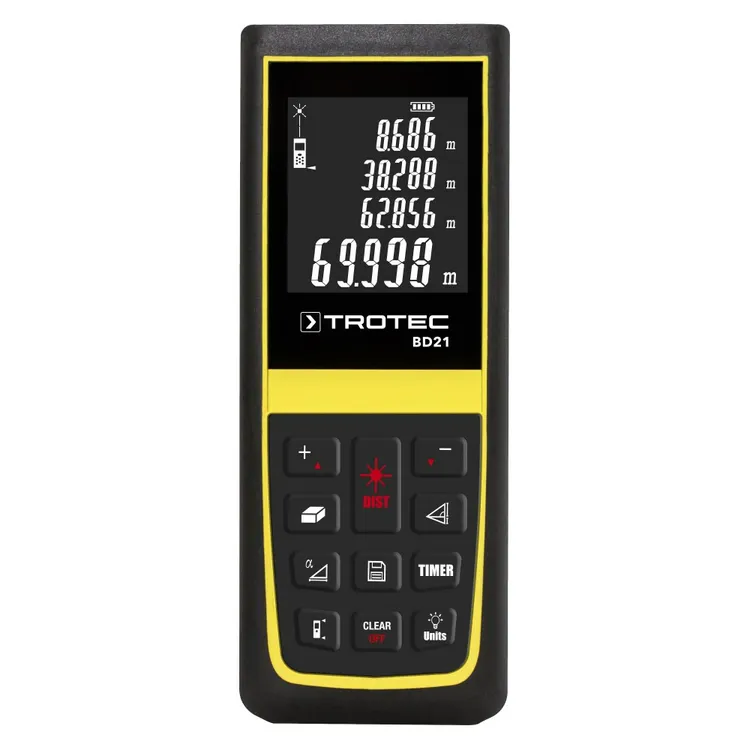

Fast, precise and versatile – laser measuring made easy
The BD21 laser distance meter enables quick and convenient measurement of distances, areas and volumes with laser precision at the push of a button – even in hard-to-reach places. Compared to conventional measuring with folding rules or tape measures, it delivers reliable, error-free results and helps to precisely calculate material requirements such as paint, parquet or tiles. Thanks to the integrated 90° tilt sensor with 3-point Pythagoras functions, the BD21 also masters complex measuring tasks such as height and partial height measurements or indirect measurements over obstacles and can even be used as an electronic spirit level. Despite its wide range of functions, operation is extremely simple thanks to dedicated buttons for each function, while the backlit multi-line display ensures perfect readability in any lighting conditions. With its robust, dust- and splash-proof IP41 housing, the BD21 is ideally suited for everyday use in crafts, renovation and interior work.
