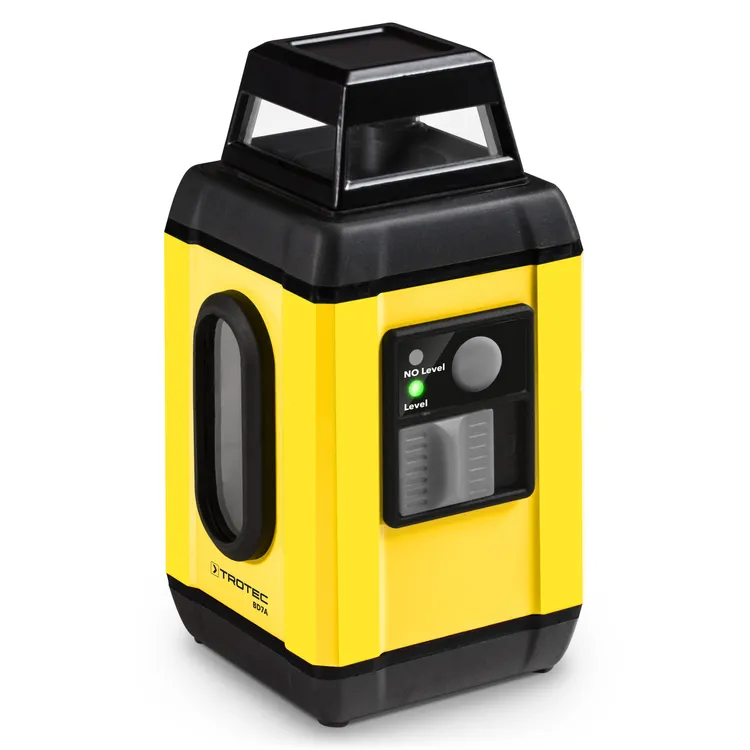

Rotary Laser BD7A

• 3 projection modes: 360° horizontal operation, cross-line operation, 90° vertical operation
• Self-levelling rotary laser
• Optical warning when outside the automatic levelling range
• High accuracy of only ± 0.8 mm/m (at 0°)

Practical details

• 3 projection modes: 360° horizontal operation, cross-line operation, 90° vertical operation
• Projects bright laser lines up to 10 m distance
• Self-levelling rotating laser – always automatically aligned straight
• High accuracy of only ± 0.8 mm/m (at 0°)
• Ideal for fast and straight alignment of drill holes, pictures, tiles, wallpaper strips, wall cabinets, shelves, etc.
• Optical warning when outside the auto-levelling range
• Includes multifunctional combination bracket with universal clamp plus suction cup
• State-of-the-art laser technology with ultra-easy handling
• Extremely light and ultra-compact
• Battery operation allows immediate use anywhere at any time
• Long-lasting Li-Ion battery with high service life for maximum operating times
• Laser lock function for projecting even tilted lines
• Operating switch with transport position for secure position locking of the laser when moving
• Integrated ¼-inch tripod thread
• Robust aluminium housing
• Fast charging via included micro-USB cable
• Telescopic tripod available as optional accessory

Technical details

• Tilt measurement – auto-levelling range: ± 3°
• Laser – range: up to 10 m
• Laser class: 2
• Laser power < 1 mW
• Wavelength: 650 nm
• Display: 2 status LEDs (red/green)
• Aluminium housing
• Power supply: internal Li-Po battery 3.7 V DC / 1000 mAh
• Ambient conditions temperature: -20 °C to +50 °C
• Dimensions (L x W x H): 55 x 55 x 112 mm
• Weight: 280 g

Scope of delivery: measuring device, multifunctional mounting arm, micro-USB cable, charger (USB 5V, 1A), quick start guide
