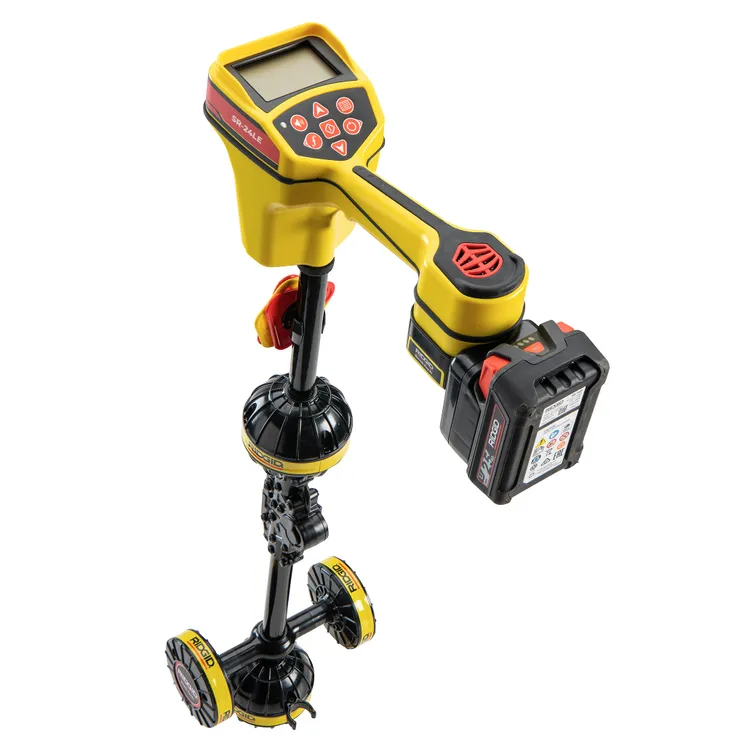

SeekTech SR-24 LE

• Active line tracing frequency: 128 Hz, 1 kHz, 8 kHz, 33 kHz
• Passive frequency range: 50/60 Hz, < 4 kHz, 4 – 15 kHz, and 15 – 30 kHz
• Custom frequencies: 30 programmable within the range 10 Hz – 35 kHz
• LCD display: 6.6 cm, 320 x 160 pixels
• Omnidirectional antennas – capture the entire signal field

Optional equipment

Additional probe markers, transmitter ST-510, transmitter ST-305, induction clamp, remote transmitter, floating transmitters

Here are some technical data of the SeekTech line detector SR-24LE at a glance

• LCD display: 6.6 cm, 320 x 160 pixels
• Bluetooth: V 2.1 + EDR, Class 1
• Operating temperature: -20 °C to 50 °C
• Storage temperature: -20 °C to 50 °C
• Humidity: 5% – 95% r.H.
• Depth measurement: continuous
• Active line search frequency: 128 Hz, 1 kHz, 8 kHz, 33 kHz
• Passive frequency range: 50/60 Hz, < 4 kHz, 4 – 15 kHz and 15 – 30 kHz
• Passive current frequency: 50/60 Hz
• Custom frequencies: 30 programmable in the range 10 Hz – 35 kHz
• Probe frequencies: 16 Hz, 512 Hz, 33 kHz
• Dimensions (L x W x H): 284 x 109 x 790 mm
• Battery type: 4x C-cell, 1.5 V alkaline (ANSI/NEDA 14 A, IEC LR14) or 4 x 1.2 V NiMH or NiCd rechargeable batteries; for battery operation rechargeable Li-Ion battery (Art. No. 7140000241 or 7140000242)

Here are the features of the SeekTech line detector SR-24LE

• Large display – shows the estimated position, direction, and depth of the line
• Omnidirectional antennas – capture the complete signal field, allowing for higher speed and accuracy
• Built-in GPS – records coordinates for cartography and GIS applications
• Bluetooth technology – transmits data to smartphones, tablets, or high-precision GPS instruments
• Smartphone/tablet app – records multiple tracks and waypoints and exports them to GIS software
• Can locate any frequency from 10 Hz to 35,000 Hz
