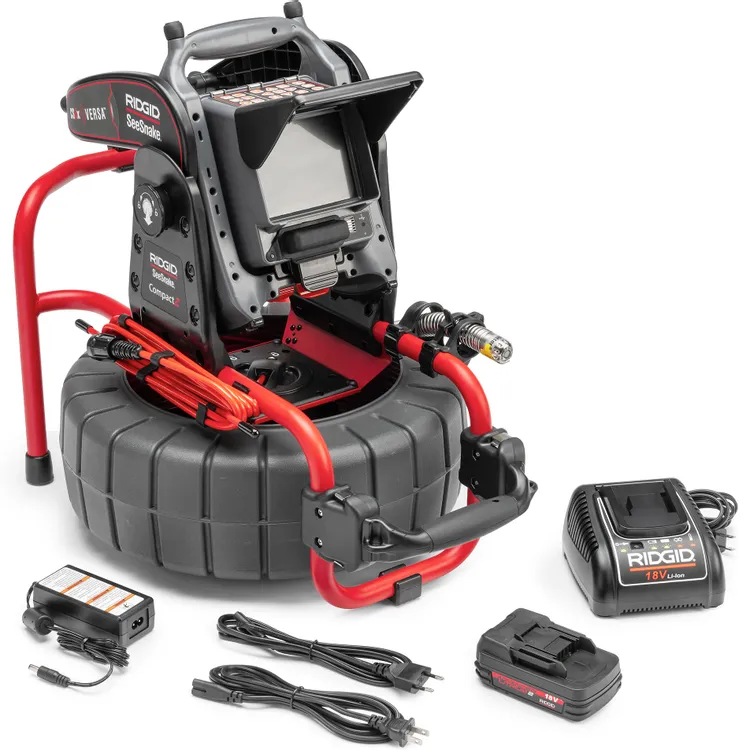

SeeSnake Pipe Inspection Camera Compact 2

Powerful pipe camera in a compact, stable and lightweight design

  • Durable drum housing with fiberglass-reinforced push cable, Ø 6 mm, 30 m long
  • Docking system for quick and easy setup and alignment of the monitor
  • Transport handle for carrying the complete camera with just one hand
  • Self-levelling camera head (Ø 25 mm) with built-in flexmitter transmitter
  • Water-resistant keypad
  • Transreflective color LCD for optimal image display even in daylight

Camera reel

Push cable

  • Dimensions: Length 30 m, Ø 6 mm (Ø glass fiber core 3.5 mm)
  • Bending radius: min. 63.5 mm
  • Tube capacity: Ø 38 to 152 mm

Camera head

  • Design: shock-resistant cover with sapphire crystal lens, automatic leveling, waterproof up to 10 bar
  • Diameter: 25 mm
  • Illumination: 6 LEDs
  • Probe: 512 Hz
  • Resolution: Video: 656 x 492 pixels (NTSC),

Photo: 768 x 576 pixels (PAL)

  • Ambient conditions: -10 °C to 50 °C, 5 % to 95 % r.h.

Dimensions

  • Dimensions: L 625 x W 432 x H 360 mm, Ø drum 432 mm
  • System cable: Length 3 m
  • Weight: 7.5 kg

Monitor unit

Display

  • Type: Color LCD
  • Size: 5.7 inch
  • Resolution: 640 x 480 pixels (VGA)
  • Brightness: 500 cd/m²
  • Power supply: 18 V Li-Ion battery or mains operation
  • Storable file formats: Standard video (MPEG4, H.264), Autolog video (highly compressed format, optimized for pipe inspections), photo (JPG), PhotoTalk™ (single image with audio commentary)
  • Interfaces: USB, Bluetooth, WLAN
  • Audio: integrated microphone and loudspeaker
  • Ambient conditions: -10 °C to 60 °C, 5 % to 95 % r.h.

Dimensions

  • Dimensions: L 356 x W 193 x H 254 mm
  • Weight: 2.6 kg (without battery)

Scope of delivery

  • Standard: SeeSnake Compact 2, SeeSnake CS6x Versa, 18 V Li-Ion battery, charger, tube guide 45 mm, 36 mm and 60 mm, guide ball 85 mm and 125 mm, 8 GB USB stick (HQ software pre-installed)
  • Optionally available: Li-ion replacement battery 18 V (2.5 Ah), 18 V (5 Ah), set of 5 guide balls (see standard scope of delivery)
Add to quote

Description

Specifications
Weight 7.7 kg [17 lb]
Overall Dimensions
Length 626 mm [25 in]
Height 429 mm [17 in]
Width 360 mm [14 in]
Drum Diameter 432 mm [17 in]
Camera
Type Self-leveling
Length 26 mm [1 in]*
37 mm [1.5 in]**
Diameter 25 mm [1 in]
Light source 6 LEDs
Sonde 512 Hz
Resolution
NTSC 656 × 492 pixels
PAL 768 × 576 pixels
Push Cable
Length 30 m [100 ft]
Diameter 7 mm [0.27 in]
Fiberglass core diameter 3 mm [0.12 in]
Minimum bend radius 64 mm [2.5 in]
Pipe Capacity § 38 mm to 152 mm
[1.5 in to 6 in]
System Cable Length 3 m [10 ft]
Operating Environment
Temperature ‡ -10°C to 50°C [14°F to 122°F]
Storage temperature -10°C to 70°C [14°F to 158°F]
Ingress protection without monitor IP×6
Relative humidity 5 to 95 percent
Altitude 4,000 m [13,120 ft]
Camera depth rating Waterproof to 100 m [328.1 ft]
* Measured from lens to spring.
** Measured from lens to end of threads.
§ Actual pipe capacity depends on pipe conditions.
‡ While the camera can function in extreme temperatures, some image quality changes may occur.

Small footprint. Big performance. The Compact 2 with CS6x Versa

The easily transportable SeeSnake Compact 2 inspection camera is the ideal solution for professional inspections in pipes with diameters from 40 to 150 mm. The self-levelling camera head with scratch-resistant sapphire crystal lens, combined with adjustable LEDs and the transreflective colour display of the detachable CS6x Versa monitor, delivers bright, crystal-clear and perfectly upright inspection images. Images and videos can be conveniently saved to the supplied USB stick.

With its integrated 512 Hz transmitter, the system can be used together with an optional locator to trace the pipe route or precisely pinpoint damage locations. Thanks to built-in Wi-Fi and Bluetooth, the CS6x Versa can also be controlled via the free HQx Live app, allowing live image and video streaming directly to a smartphone or tablet for maximum flexibility on the job.
