The Ultrasound Transmitter T710 is compatible with following devices

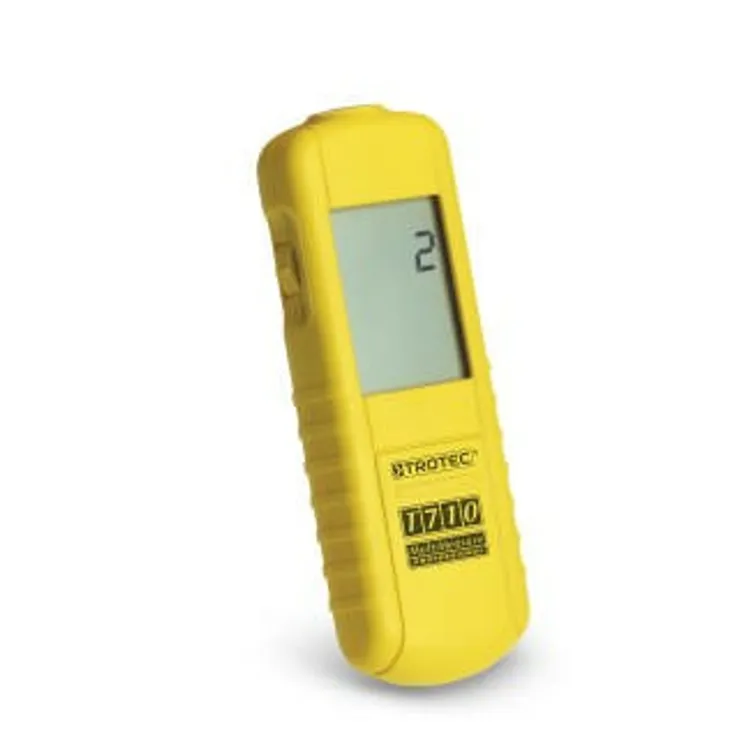

The T710 ultrasound transmitter is specially designed for combined operation with the T700 and serves as a powerful signal source for professional leak testing. With four selectable frequency modulations, it emits ultrasonic signals that penetrate even the smallest openings, making hidden leaks in components and compressed air systems reliably detectable.
In addition, the T710 can be placed inside sealed containers such as tanks or housings to actively flood them with ultrasound. Any escaping signals can then be detected from the outside using an ultrasonic receiver, enabling fast, contact-free testing of pressureless systems and enclosed components with maximum precision and efficiency.
| Master Data | |
| item number | 3510207710 |
| Length without packaging [mm] | 165 mm |
| Length with packaging [mm] | 227 mm |
| Width without packaging [mm] | 48 mm |
| Width with packaging [mm] | 67 mm |
| Height without packaging [mm] | 25 mm |
| Height with packaging [mm] | 32 mm |
| Weight without packaging [kg] | 0.22 kg |
| Weight including packaging [kg] | 0.1 kg |
| Technical data | |
| Display | Monochrome LCD |
| receiving frequency | 40 KHz ± 2 KHz |
| Fog time at maximum level [s] | Neuer Text |
| Energy | |
| Number of batteries per device | 1 |
| Conditions during operation, storage, and in the working environment | |
| Operation – max. temperature [°C] | 40 |
| Operation – min. temperature [°C] | 0 |
| Storage – max. temperature [°C] | 60 |
| Storage – min. temperature [°C] | -20 |
| Leak detection | |
| Burning time per smoke cartridge | Neuer Text |
| Fogging time at medium level and below [s] | Neuer Text |
| device control | thumb wheel |
| internal sensors | Ultrasound [Digits] |
| energy supply | 9 V |
| internal (battery) | |
| housing design | plastic |
| IP Protection Rating | 1. Label |
| 2. Protection towards contact | |
| 3. Protection towards water | |
| 4. Protection towards foreign matter |
