| Parameter | Value | |
| Model | XC300 | |
| Article number | 3.110.003.043 | |
| Measurement | Temperature range | -20 °C to +600 °C (optionally even up to +1,500 °C) |
| Accuracy | ± 2 °C, ± 2 % from the measured value | |
| Radiometric image performance | Detector type | UFPA |
| Detector resolution | 384 x 288 pixels | |
| Spectral range | 8 to 14 µm | |
| Field of vision (FOV) | 24° x 18° | |
| Geometric resolution | 1.1 mrad | |
| Thermal sensitivity | 0.05 °C at 30 °C | |
| Refresh rate | 50/60 Hz | |
| Focus / min. focus distance | Automatic and manual / 0.15 m | |
| Visual image performance | Digital photo camera | 5 megapixels, integrated photo lamp |
| Video norm | PAL / NTSC | |
| Image representation | Display | Tiltable, swivel-mounted 3.5-inch LCD touchscreen, capacitive |
| Image display | Pseudo colours, 6 colour palettes | |
| Image display options | IR image, real image, DuoVision Plus display (overlay of infrared and real images in random intensities), DuoVision Plus display (fusion of infrared and real image as contour emphasizing detail-enhanced thermogram) | |
| Zoom factor | 10-fold, steplessly | |
| Measurement and analysis | Measuring spots | 8 movable temperature measuring spots (can be freely configured) |
| Measuring functions | Isotherm, line profile analysis, sector analysis (rectangle), various alarm functions, Min/Max temperature tracking (hot/cold spot), differential measurements at up to 8 dynamic temperature measuring spots | |
| Area measurement | 2 areas | |
| Degree of emission | User-defined variably adjustable from 0.01 to 1.0 | |
| Measurement correction | Correction of the reflected object temperature; automatic correction based on user-defined specifications for ambient temperature, distance, relative humidity | |
| Data storage | Memory | 16 GB internal flash memory |
| File format | Radiometric image: 16 bit JPEG; visual image: JPEG; non-radiometric thermographic video: MPEG-4; fully radiometric infrared video: 14 bit IR format | |
| Data storage / transmission | Storage of non-radiometric IR videos (MPEG-4) as well as radiometric and real images on internal memory; storage of fully radiometric IR videos* on PC via USB 2.0 | |
| Voice recording | Comments can be stored along with every IR image (optionally available Bluetooth headset required) | |
| Ports | USB type C, analogue video (PAL / NTSC) | |
| Laser | Type | Semiconductor AIGalnP diode laser class 2, 1 mW / 635 nm red |
| Distance measurement | 1 to 30 m | |

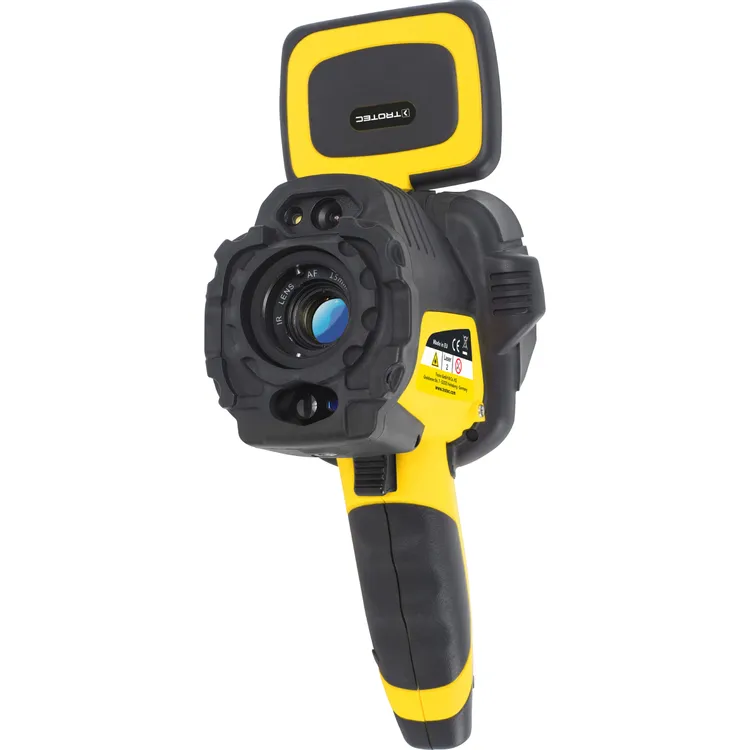

The XC600 thermal imaging camera proves that top-class thermography does not have to come with a top-tier price tag. Powered by a state-of-the-art detector with 307,200 independent temperature measurement points and an ultra-smooth refresh rate of nearly 60 Hz, it delivers exceptionally detailed, high-accuracy thermal images in real time—four times the data of conventional 320 × 240 cameras. With an outstanding geometric resolution of 0.65 mrad, thermal sensitivity down to 0.06 °C, and temperature ranges up to +600 °C (optionally +1,500 °C), even the smallest anomalies can be reliably detected from greater distances.
Designed for efficiency, durability, and user comfort, the XC600 combines fast laser-assisted autofocus, integrated distance measurement, stepless 10× zoom, IR video and interval recording, and DuoVision Plus image fusion in a rugged IP54 pistol-style housing with an innovative rotatable PanoFold touchscreen. Supplied ready for immediate use with a high-capacity battery, professional analysis software, and transport case, the XC600 delivers flagship-level performance, flexibility, and documentation capabilities—making it the smart choice for demanding professionals who expect more value from thermal imaging.
