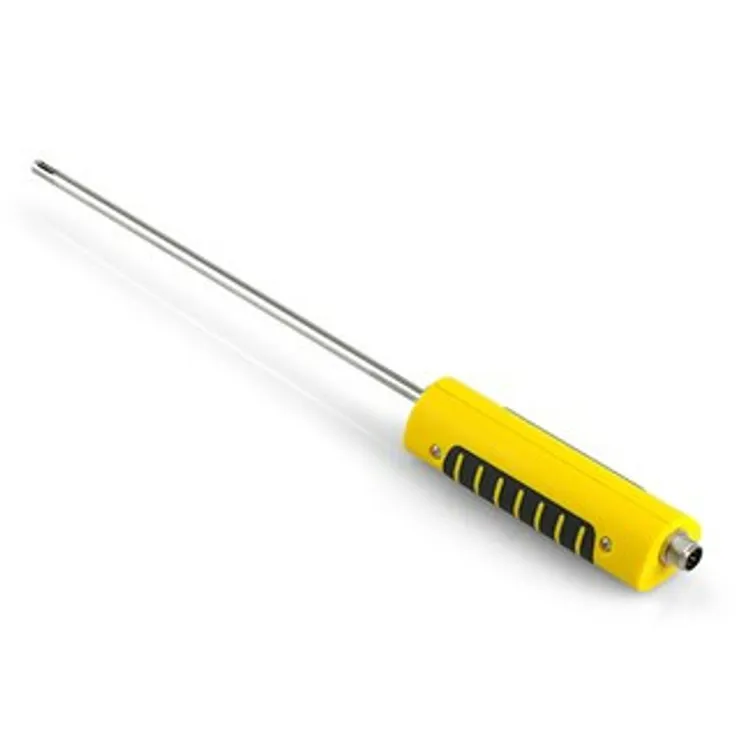

TS 410 SDI Anemometer sensor

Reliable airflow measurement for building diagnostics, HVAC and drying applications

The TS 410 SDI anemometer sensor is connected via the TC 30 SDI connection cable and is ideal for a wide range of professional applications. It is used not only for detecting weak points when verifying the airtightness of buildings (blower door tests), but also for monitoring the distribution of air flow and temperature in ventilation and air-conditioning systems. Renovation and restoration companies also rely on this sensor to check the performance of drying installations during insulation drying after water damage, as it allows quick and precise verification of whether sufficient air flow is present at the relief openings to effectively dry the insulation layer.

Here are some technical details of the TS 410 SDI

Display 1: Air flow velocity

• Measuring range airflow: 0.00 to 20.00 m/s
• Resolution air flow: 0.01 m/s
• Accuracy airflow: ± (0.2 m/s + 2 % of measured value)
• Units airflow/volume flow: m/s, m³/s, m³/min, m³/h, l/min

Display 2: Temperature

• Measuring range temperature: 0 °C to +50 °C
• Resolution temperature: 0.1 °C
• Accuracy temperature: ± 0,7 °C (at v > 0,5 m/s)
• Units for temperature display: °C, °F

Sensor element

• Material: stainless steel
• Length / Ø: 210 mm / 6 mm
• Sensor handle Ambient conditions: 0 °C to +50 °C (measuring electronics in handle).
