Name: TS 470 SDI Anemometer Sensor | Free Shipping
Price: 2309.45 AED
Availability: InStock

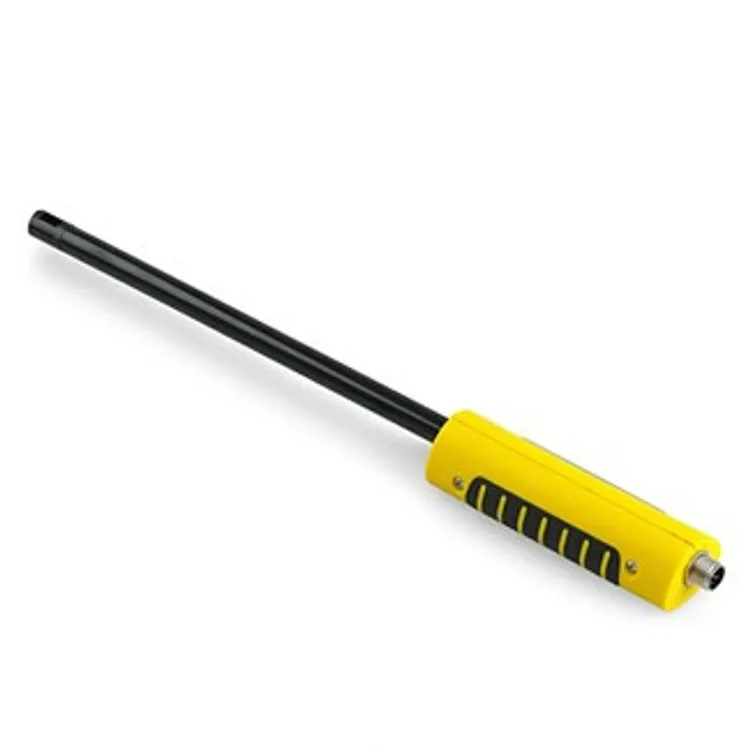

TS 470 SDI Anemometer Sensor

The technical data at a glance

Sensor display 1: air velocity

Measuring range: 0.00 to 20.00 m/s

Resolution: 0.01 m/s

Accuracy: (± 0.2 m/s + 3% of the measured value)

Units: m/s, m³/s, m³/min, m³/h, l/min

Sensor display 2: air temperature

Measuring range: 0 °C to +50 °C

Resolution: 0.1 °C

Accuracy: ± 1.0 °C (at v > 0.5 m/s)

Units (Unit 2) for display sensor: °C, °F

Sensor element

Material: polycarbonate

Length / Ø: 200 mm / 12 mm

Sensor handle environmental conditions: 0 °C to +50 °C

Description

Technical data

Master Data
SKU	3510220265
Weight without packaging [kg]	0.08 kg
Other dimensions
Diameter [mm] \| Dimensions of sensor element	12
Conditions during operation, storage, and in the working environment
Operation – max. temperature [°C]	50
Operation – min. temperature [°C]	0
Appearance
Handle material	Plastics
Internal sensors
Air flow rate [m/s]
Air temperature [°C]
Air temperature [°F]
Interfaces/connector format
SDI connector
Material design of sensor element
Polycarbonate

Precise airflow measurement for building diagnostics, HVAC and drying applications

The TS 470 SDI anemometer sensor is connected via the TC 30 connection cable and is a versatile high-precision measuring instrument for professional airflow analysis. It is ideal for locating weak points when testing the airtightness of buildings (Blower Door tests) as well as for checking airflow distribution and temperature conditions in ventilation and air-conditioning systems.

Reconstruction and restoration companies also rely on the TS 470 SDI to check the performance of their drying systems during insulation layer drying. The sensor enables fast and reliable verification of whether sufficient airflow is present at the outlet openings to ensure efficient and complete drying of the insulation layer.
