Hydrogen measurement
Sensor element
Sensor complete (sensor element and handheld housing)
Operating conditions
* A T3000Â multifunction meter is also required to use the TSÂ 810Â SDI. The T3000Â multifunction meter is not included in the scope of delivery.
| Master Data | |
| SKU | 3510220290 |
| Length without packaging [mm] | 330 mm |
| Width without packaging [mm] | 63 mm |
| Height without packaging [mm] | 31 mm |
| Weight without packaging [kg] | 0.3 kg |
| Technical data | |
| Response time | < 1 |
| Sensitivity [ppm] | H2 gas | 1 |
| Conditions during operation, storage, and in the working environment | |
| Operation – max. temperature [°C] | 50 |
| Operation – min. temperature [°C] | 0 |
| Appearance | |
| Handle material | Plastics |
| Functions and features | |
| Flexible gooseneck | |
| Integrated connection cable | |
| Robust sinter filter for sensor protection | |
| Internal sensors | |
| H2 hydrogen gas [digits] | |
| Interfaces/connector format | |
| SDI connector | |
| Material design of sensor element | |
| Other |

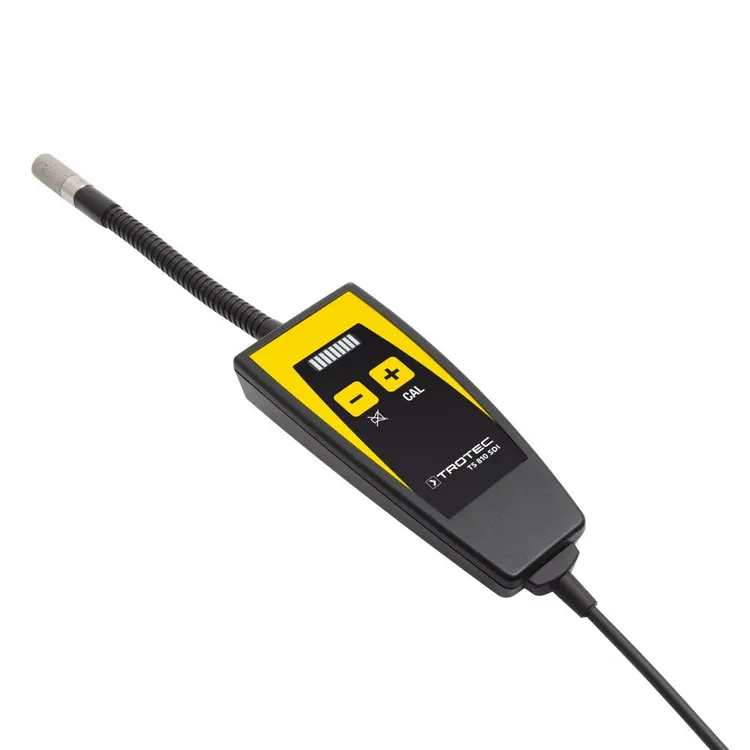

The TS 810 SDI trace gas sensor detects hydrogen, for example from the commonly used 95/5 forming gas, and enables fast, non-destructive localisation of leaks by reliably indicating the highest hydrogen concentration within the measurement area. This makes it ideal for detecting cracks and leaks in pressure vessels, pipes and tanks. The sensor is fully powered by the T3000 multifunction measuring device, eliminating the need for separate batteries. Thanks to its flexible gooseneck, measurements can also be taken in hard-to-reach or inaccessible areas. In addition, a zero reset can be performed at the push of a button, enabling differential indication measurements using two real-time values from different positions.
