| Parameter | Value | |

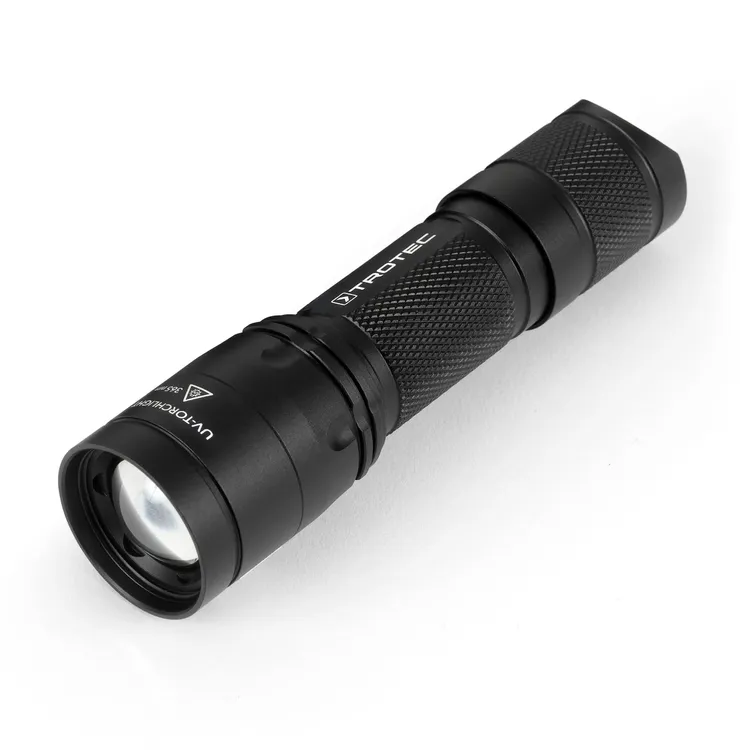

| Model | UV-Torchlight 16F | |
| Weight incl. battery | 142 g | |
| Dimensions (diameter x length) | 34 mm x 130 mm | |
| Radiation intensity* Radiation cone ø 250 mm | 2,800 µW/cm² | |
| Radiation intensity* Radiation cone ø 150 mm | 8,300 µW/cm² | |
| Radiation intensity* Radiation cone ø 100 mm | 18,000 µW/cm² | |
| Radiation intensity* Radiation cone ø 60 mm | 39,000 µW/cm² | |
| Power supply | 3 x AAA battery 1.5 V or 3 x AAA Ni-MH rechargeable battery 1.2 V |
|
| Light source | 1 x 365 nm LED | |
| Wavelength UV-A light | 365 ± 5 nm | |
| Operating time | > 2 hours | |
| Type of protection | IP54 | |
| No. | Operating element | |
| 1 | Focus ring | |
| 2 | UV light source | |
| 3 | Power button | |
| 4 | Battery compartment closure | |
| 5 | Opening for wrist strap | |
The UV-Torchlight 16F is a professional UV-A handheld torch for non-destructive fluorescent trace detection in material testing, leak detection, quality control, and security applications. Despite its lightweight and ultra-compact design, it delivers maximum UV-A output instantly at the push of a button and achieves extremely high point light irradiance, making even the smallest fluorescent traces clearly visible in daylight. Thanks to the integrated focus ring, the UV beam can be continuously adjusted from spot to floodlight, providing exceptional flexibility for both pinpoint inspections and large-area checks. This variable focus, combined with its robust design and high performance, makes the UV-Torchlight 16F a universally applicable inspection tool for a wide range of professional applications in industry, buildings, and technical maintenance.
