| Parameter | Value | |
| Model | VSC206 | |
| System | Type of lighting | 6 white LEDs (colour temperature 5,000 to 6,000 K) |
| Luminous intensity | 40,000 lux | |
| White balance | Default setting ex works | |
| Brightness control | manually adjustable | |
| LCD display | 3.5 inch TFT LCD (640 x 480 px) | |
| Memory | slot for removable SD card (max. 32 GB) | |
| File formats | JPEG image format, AVI video format | |
| Power supply | 4 x rechargeable batteries AA, 1.2 V, or batteries AA, 1.5 V | |
| Operating time | ≤ 2 h | |
| Video connection | HDMI | |
| USB port | mini USB type B | |
| Probe | Dimensions | Length 2 m, ø 6 mm |
| Design | Exterior: stainless steel wire mesh for high torsional stability, inner layer: polyurethane on steel spiral | |
| Bending | up / down / left / right ≈ 120° | |
| Camera | Image sensor | CMOS |
| Resolution | 350,000 pixels | |
| Field of vision | Bending angle > 90° | |
| Joint movement | 360° | |
| Camera head | stainless steel with titanium coating | |
| Zoom | 5x digital | |
| Control software | Operator guidance | simple interactive menu control, menu navigation via joystick |
| Available menu languages | English, Chinese, German, French, Spanish, Italian, Russian and Japanese | |
| Software functions | system settings, video settings, memory functions | |
| Ambient conditions | Temperature | -10 °C to +50 °C |
| Humidity | < 90 % RH | |
| Type of protection (housing) | IP54 , splash-proof | |
| Protection type (probe) | IP67 (The probe can be used in oil, light oil and water with a salt content of 5 %) | |
| Physical characteristics | Construction | ABS housing with integrated bumpers |
| Dimensions | 280 x 90 x 152 mm | |
| Weight | 590 g (incl. batteries) | |

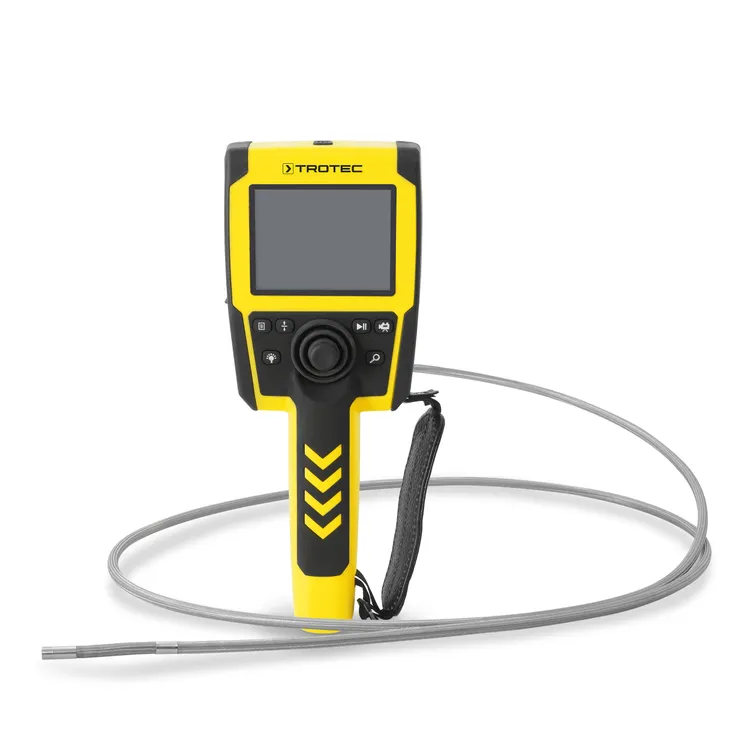

The professional VSC206 videoscope impresses with its extremely low weight of just 300 g for the hand-held control unit, enabling comfortable and fatigue-free operation even during long inspection sessions. Its continuously controllable, flexible probe with a titanium-coated camera head provides an excellent all-round view in the inspection area. Powerful multi-LED illumination and a brilliant VGA LCD display deliver sharp, detailed images for precise assessment. Images and videos can be easily stored on the supplied SD card. Thanks to its rugged, industrial-grade housing with impact protection and resistance to dust and splashing water, the VSC206 is perfectly suited for reliable use in demanding environments.
