Scope of delivery: Videoscope, transport cases, power adaptor, batteries, SDcard (8GB), cleaning tissue, test certificate
| Technical data | |||
| Parameter | Value | ||
| Model | VSC3008 | ||
| Article number | 3,51,00,09,640 | ||
| System | Type of lighting | 6 white LEDs (colour temperature 5,000 to 6,000 K) | |
| Luminous intensity | 50,000 lux | ||
| White balance | 4 setting options (automatic, sunlight, clouded, artificial light) | ||
| Brightness control | manually adjustable | ||
| LCD display | 4.3-inch TFT LCD (800 x 480 px [Wide VGA]) | ||
| Interfaces | USB, analogue video (HDTV) | ||
| Memory | slot for removable SD card (max. 32 GB) | ||
| File formats | JPEG image format, AVI video format | ||
| Power supply | 5 V lithium polymer battery pack; power adapter (input: AC 100 V to 240 V, 50/60 Hz, 0.2 A, output: DC 5 V, 1.0 A) | ||
| Operating time | > 4 h | ||
| Probe | Dimensions | length 3 m, ø 8 mm | |
| Design | exterior: tungsten wire mesh for high torsional strength, inner layer: polyurethane on steel spiral | ||
| Bending | up / down / left / right ≈ 120° | ||
| Type of protection | IP67, oil-resistant | ||
| Camera | Image sensor | CMOS | |
| Resolution | 440,000 pixels | ||
| Field of vision | 130° | ||
| Camera head | stainless steel with titanium coating | ||
| DOF | 15 mm – ∞ | ||
| Zoom | 3x digital | ||
| Control software | Operator guidance | simple interactive menu control, menu navigation via joystick | |
| Available menu languages | German, English, French, Italian, Dutch, Spanish, Portuguese, Polish, Danish, Finnish, Russian, Simplified Chinese, Japanese, Korean | ||
| Software functions | system settings, video settings, memory functions | ||
| Ambient conditions | Temperature | -10 °C to +50 °C | |
| Humidity | < 90 % RH | ||
| Type of protection (housing) | IP54 | ||
| Physical characteristics | Construction | ABS housing with integrated bumpers | |
| Dimensions | 410 x 154 x 80 mm | ||
| Weight | 960 g (incl. batteries) | ||

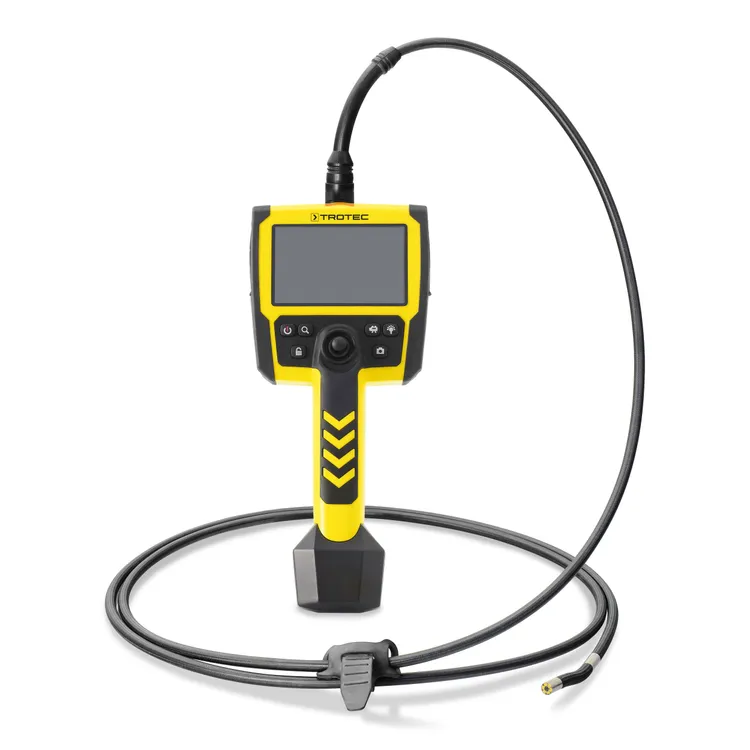

The professional VSC3008 impresses with its extremely lightweight design – the ergonomic handgrip control unit weighs only 400 g, enabling long, fatigue-free inspection work. The flexible, continuously controllable probe with titanium-coated camera head ensures excellent manoeuvrability and a perfect all-round view even in hard-to-reach inspection areas.
Thanks to its multi-layer probe construction with tungsten mesh, PU coating and a flexible spring steel core, the VSC3008 offers maximum freedom of movement while maintaining high torsional resistance. Powerful multi-LED illumination combined with a brilliant wide VGA LCD display delivers sharp, detailed images for precise inspections. Single images and complete video sequences can be saved easily to the supplied SD card. The rugged ABS housing, reinforced with impact-protective materials, reliably withstands harsh industrial environments and protects against dust and splashing water – ensuring dependable performance even under demanding conditions.
