For combined inspection use with the VSP-Control control unit.

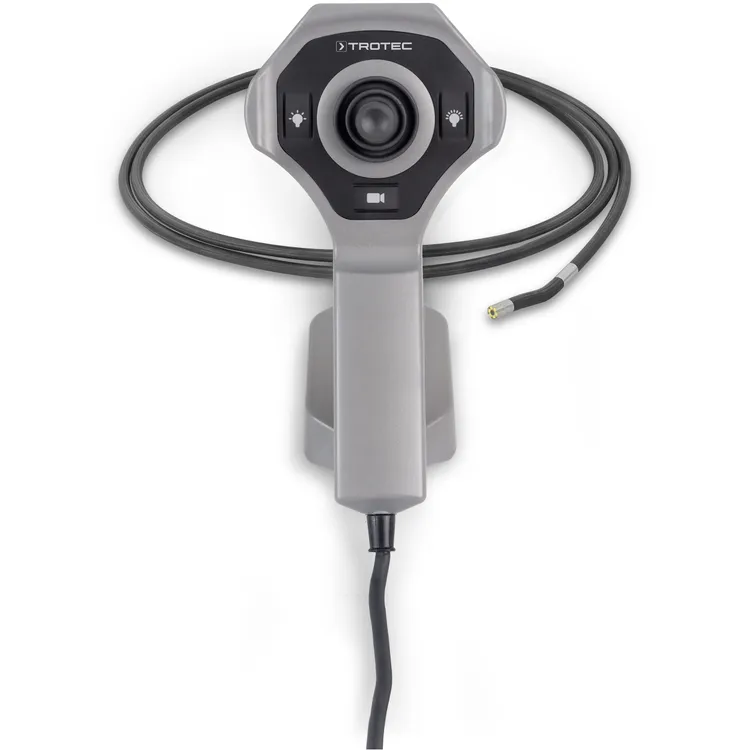

The VSP-VS endoscope has a camera head that can be continuously angled in all directions and a robust, multi-walled probe for maximum flexibility combined with high torsional strength.
| Category | Parameter | Value |
| General Information | Article number | 3.110.007.153 |
| Display | Resolution | 1,000,000 pixels |
| Interface | Connection cable | Multi-connector for VSP Control, approx. 150 cm |
| Functions & Features | 1. Probe head bending | Yes |
| 2.Bending directions | Up / Down / Left / Right | |
| 3.Photo / video production | Yes | |
| 4.Lighting brightness control | Yes | |
| Probe / Camera Head | 1.Number of LEDs | 6 |
| 2. Depth of Field (DOF) | 10 to 80 mm | |
| 3. Field of vision | >120° | |
| 4. Probe diameter | 3.9 mm | |
| 5. Probe length | 1.5 m | |
| 6. System construction | Pistol grip with keypad and joystick control | |
| 7. Probe construction | Tungsten wire mesh with titanium alloy | |
| Safety | 1. Protection type of system | IP64 |
| 2. Protection type of probe | IP67 | |
| Dimensions | 1. Length (without packaging) [mm] | 155 |
| 2. Width (without packaging) [mm] | 110 | |
| 3. Height (without packaging) [mm] | 190 | |
| Weight | Weight (without packaging) [kg] | 0.62 |
