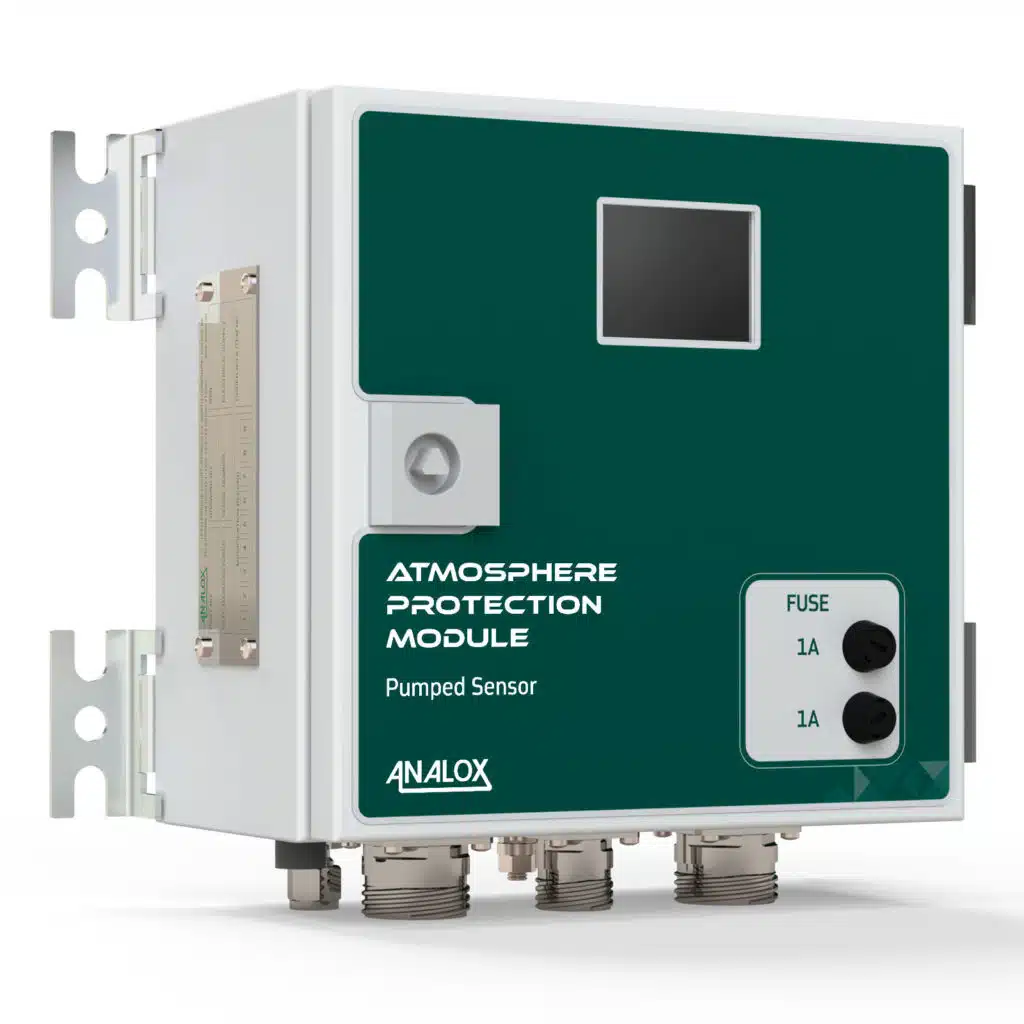

The Analox APM (Atmosphere Protection Module) is a configurable modular system which has the ability to monitor up to 2 gasses. This unique solution can be used as a stand alone atmosphere monitor or it can be integrated into existing PMS systems.
| SYSTEM SPECIFICATION | |
| Operating Temperature | 0°C to +45°C +32°F to +113°F |
| Operating pressure | 700 to 1300mBar |
| Humidity Range | 0 to 95% RH |
| Power | 24vDC (nominal) as standard |
| Communications | MODBUS RTU |
| Relays | 2 as standard |
| Calibration interval | Before mission and / or every 3 months |
| SENSOR UNIT | |||
| Sensor type | Range | Danger | |
| CO2 | NDIR | 0 to 5% / 0 to 30mBar | Toxic |
| O2 (Depleted) | Electrochemical | 0 to 25% / 0 to 2500mBar | Asphyxiation |
| O2 (enriched) | Electrochemical | 0 to 25% / 0 to 2500mBar | Fire/explosion |
| R134a | NDIR | 0 to 1000ppm | Asphyxiation |
| VOCs | PID | 0 to 20ppm | Toxic |
The APM is a highly adaptable system designed to cater for your unique requirements. Analox engineers have future-proofed the design, ensuring it will remain compliant even as regulations evolve. Whether it operates as a standalone unit or seamlessly integrates with a platform management system (like the Analox DAMS), the APM swiftly detects gas hazards in the vicinity empowering the crew to take immediate action.
The APM has been designed to be a trusted solution for submarines and surface ships, operating in temperatures from 0°C to +45°C (+32°F to +113°F). Equipped with Pressure Sync temperature-compensated sensors, rest assured that your Analox APM won’t trigger false alarms, no matter how the onboard temperature or pressure fluctuates.

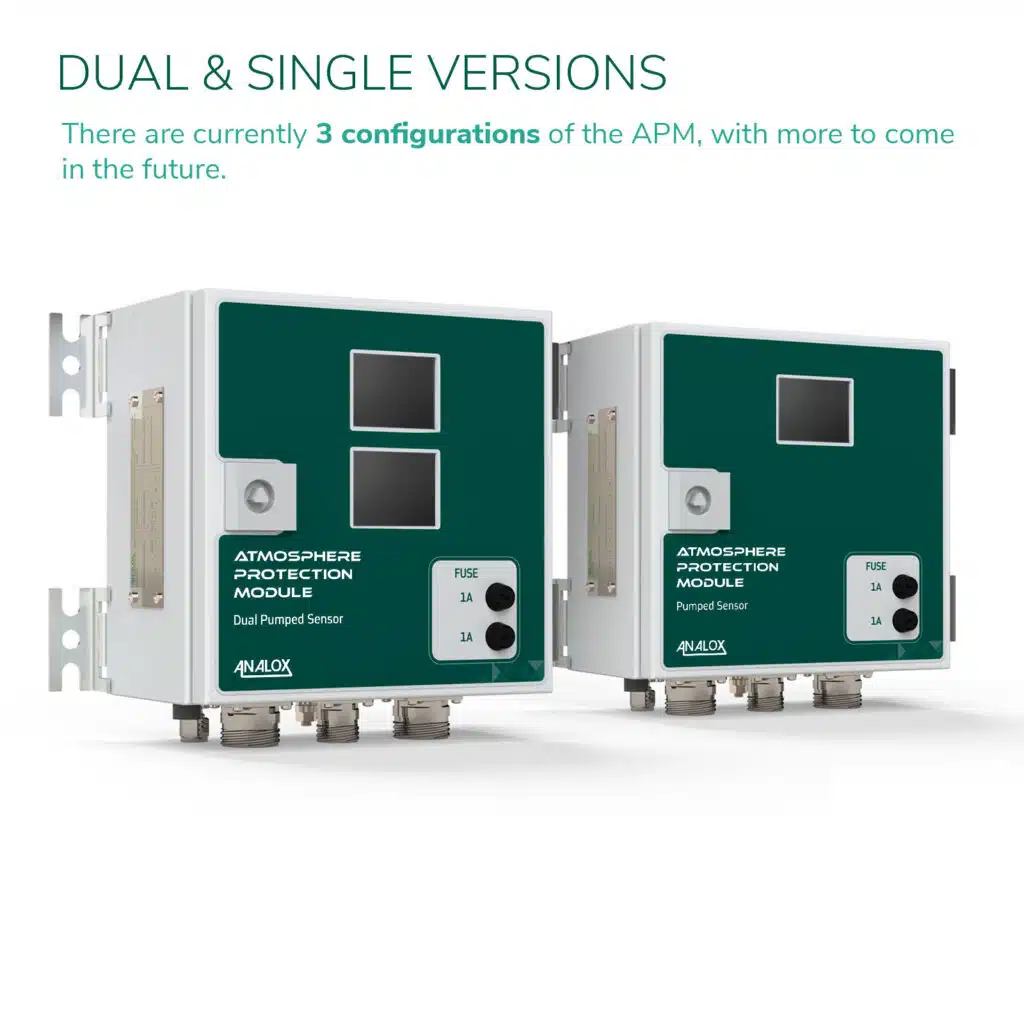

This applies to both single and dual APM units:
Whether you find yourself on the surface of the sea or way under it, you require continuous, reliable atmosphere monitoring to ensure safety of all those onboard.
Already the premier gas monitoring and safety source for the defense community worldwide, Analox Group has recently launched the APM (Atmosphere Protection Module) providing submariners with an easy and effective way to monitor up to 2 gasses which offer immediate local notification of gas hazards with the built in option for remote notifications.
The Analox Team of engineers understand the challenges for our defense customers along with the various compliances we must adhere to. The APM has been designed utilizing all of this knowledge and to ensure it offers life saving accuracy, notifying the crew in the immediate area of hazards, helping to protect their safety.
The R134a detector is designed to constantly sample the local atmosphere and monitor for R134a & O2 gasses, indicating when concentrations reach alarm levels, or a fault is detected.
The dual CO2 & O2 detector is designed to constantly sample the local atmosphere and monitor for CO2 & O2 gasses, indicating when concentrations reach alarm levels, or a fault is detected
The O2 detector is designed to constantly sample the local atmosphere and monitor for O2 gasses, indicating when concentrations reach alarm levels, or a fault is detected.
