M-Count 2C

M-Count 2C

AED 0.00

SKU 600481 Category Sensors Brand: HWG

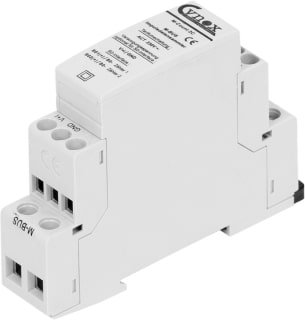

M-Count 2C

2x S0 datalogger and converter to M-Bus (2x pulse input (S0) / M-Bus output)

Features

Power Supply: M-Bus, in case of M-Bus failure from the internal lithium battery
Current consumption: approx. 50μA when battery operated, 1.5mA from M-Bus network
Battery lifetime: for consumption 0.23mAh from battery, approx. 200 days in case of M-Bus failure
Digital inputs: double signal inputs (S0 optional), 50Hz samping cycle (˂30 ms for S0)
Tariff signal: through change-over contact to TS channel or 250 VAC through ACT input
Interface: M-Bus according to EN1434-3 standard, 2400 baud
Temperature range: -20° up to +65°C
Mounting: Industrial DIN-rail 35mm – acc. to EN 50022 standard
Dimensions: 1-module size (1 – TE = 18 mm), 82x63x17.5 mm

Description

Applications and usage

Collecting of impulses from gas-, water-, electricity- or other meters and field units with pulse output or electrical outputs of of type S0.

Reviews

There are no reviews yet.

Be the first to review “M-Count 2C”

Flyer (248 KB)
