* for ca. 200 measurement projects consisting of maximum 3 x 3,600 (=10,800) measured values, that is a total of 200 x 10800 (=2,160,000) measured values.
| Master Data | |
| SKU | 3510207010 |
| Length without packaging [mm] | 170 mm |
| Length with packaging [mm] | 200 mm |
| Width without packaging [mm] | 62 mm |
| Width with packaging [mm] | 70 mm |
| Height without packaging [mm] | 34 mm |
| Height with packaging [mm] | 40 mm |
| Weight without packaging [kg] | 0.31 kg |
| Weight including packaging [kg] | 1 kg |
| Technical data | |
| Display | LCD_color |
| Data memory | integrierter Speicher für ca. 200 Messungen bestehend aus maximal 3 x 3.600 Messwerten |
| Recording period | 5, 10, 30, 60 min |
| Storage type | interner Flash |
| Height above sea level (NN) | max. 3000m |
| Energy | |
| Number of batteries per device | 4 |
| external (USB) | 5 V USB |
| Conditions during operation, storage, and in the working environment | |
| Operation – max. temperature [°C] | 50 |
| Operation – min. temperature [°C] | 0 |
| Storage – max. temperature [°C] | 60 |
| Storage – min. temperature [°C] | -20 |
| Storage – max. rel. humidity (non-condensing) [%] | 95 |
| Operation – max. rel. humidity (non-condensing) [%] | 90 |
| Functions and features | |
| Acoustic alarm function | |
| Automatic switch-off | |
| Data archiving | |
| Data logger function | |
| Display archive contents | |
| Display illumination with brightness control | |
| Display made of highly scratch-resistant “Blanview” special glass | |
| Graphic grid measurement function | |
| Integrated calendar for clear file identification | |
| Language setting | |
| Material characteristics for hundreds of types of wood for wood moisture measurement | |
| Material selection for anhydrite screed | |
| Material selection for cement screed | |
| Maximum value display | |
| Measured value hold function | |
| Minimum value display | |
| Time | |
| Device control | |
| Cross control | |
| Touch | |
| Interface | |
| BNC | |
| SDI | |
| USB | |
| External sensors | |
| Absolute humidity [g/m³] | |
| Air flow rate [m/s] | |
| Air temperature [°C] | |
| Air temperature [°F] | |
| Air volume flow [l/min] | |
| Air volume flow [m³/h] | |
| Air volume flow [m³/min] | |
| Air volume flow [m³/s] | |
| Dew point temperature [°C] | |
| Dew point temperature [°F] | |
| Material moisture building [CM-%] | |
| Material moisture building [digits] | |
| Material moisture building [M-%] | |
| Material moisture wood [%] | |
| Material temperature [°C] | |
| Material temperature [°F] | |
| Mixing ratio [g/kg dry air] | |
| Relative humidity [%] | |
| Trace gas H2 [digits] | |
| Operating time | |
| Active approx. 24 h | |
| Passive approx. 1 year | |
| Power supply | |
| 4 x 1.5 V, AA | |
| external (USB) | |
| internal (battery) | |
| Housing design | |
| Plastics | |
| IP type of protection | |
| Label | IP54 |
| Protection towards contact | |
| Protection towards water | |
| Protection towards foreign matter |

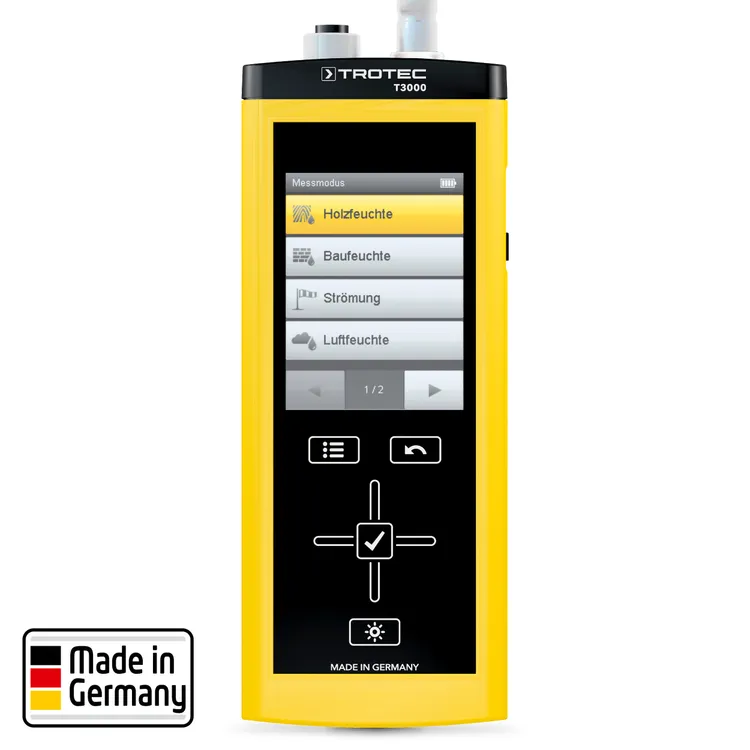

The T3000 is a professional multifunction measuring instrument for measuring relative humidity and air temperature, surface temperature, wood and building moisture, airflow and hydrogen trace gas as part of leak detection. It also enables graphical display of moisture distribution using raster measurements for precise damage location. Thanks to its innovative concept as a universal base unit with modern button-touchscreen control and flexibly interchangeable sensors, users no longer need to carry a whole collection of separate measuring instruments. With its extensive range of sensors and electrodes, the T3000 is ideally suited for classic applications in industrial and laboratory measurement technology as well as for building diagnostics and numerous trades such as heating, air conditioning and ventilation, sanitary installations, flooring, coating, painting and carpentry – wherever reliable measurements of moisture, climate and air flow are required.
Working area
Storage
Compatibility SDI sensors (digital)
Compatibility BNC electrodes
Energy & other
