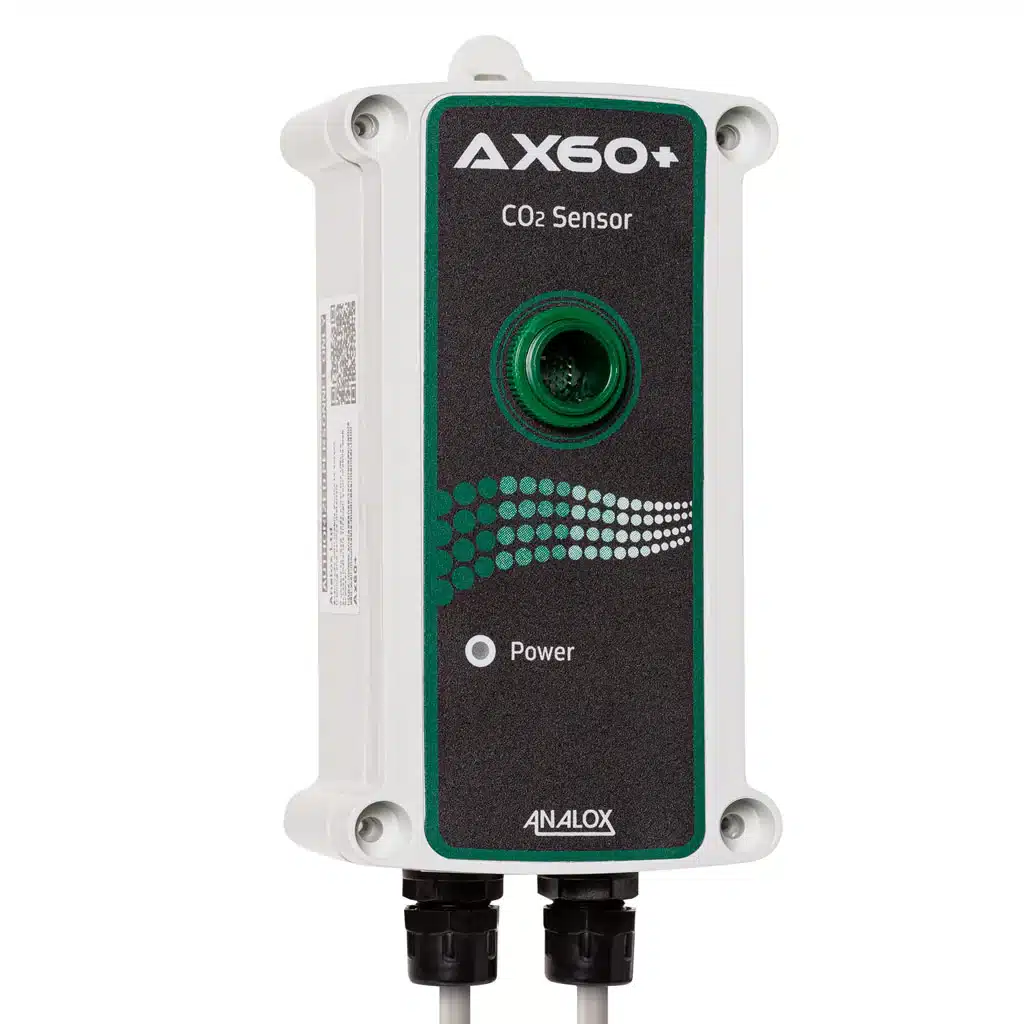

The Analox Ax60+ CO2 sensor uses advanced Nondispersive Infrared (NDIR) technology to measure CO2 levels and ensure workplace safety.
If you have CO2 on site, having a CO2 safety monitor is crucial.
| Feature | Specification |
|---|---|
| Gas Detected | Carbon Dioxide (CO2) |
| Measurement Technique | Infrared |
| Range | 0% to 5% (0-50,000ppm) |
| Default Alarm Set Points | USA regulations (OSHA), NBIC, NFPA and IFC):
TWA – 5000ppm (0.5%) International/European regulations (EH40): TWA – 5000ppm (0.5%) |
| Sensor Warm Up Time | 40 Seconds |
| Warranty | 5 Years |
| Response Time | (T90) <30 seconds |

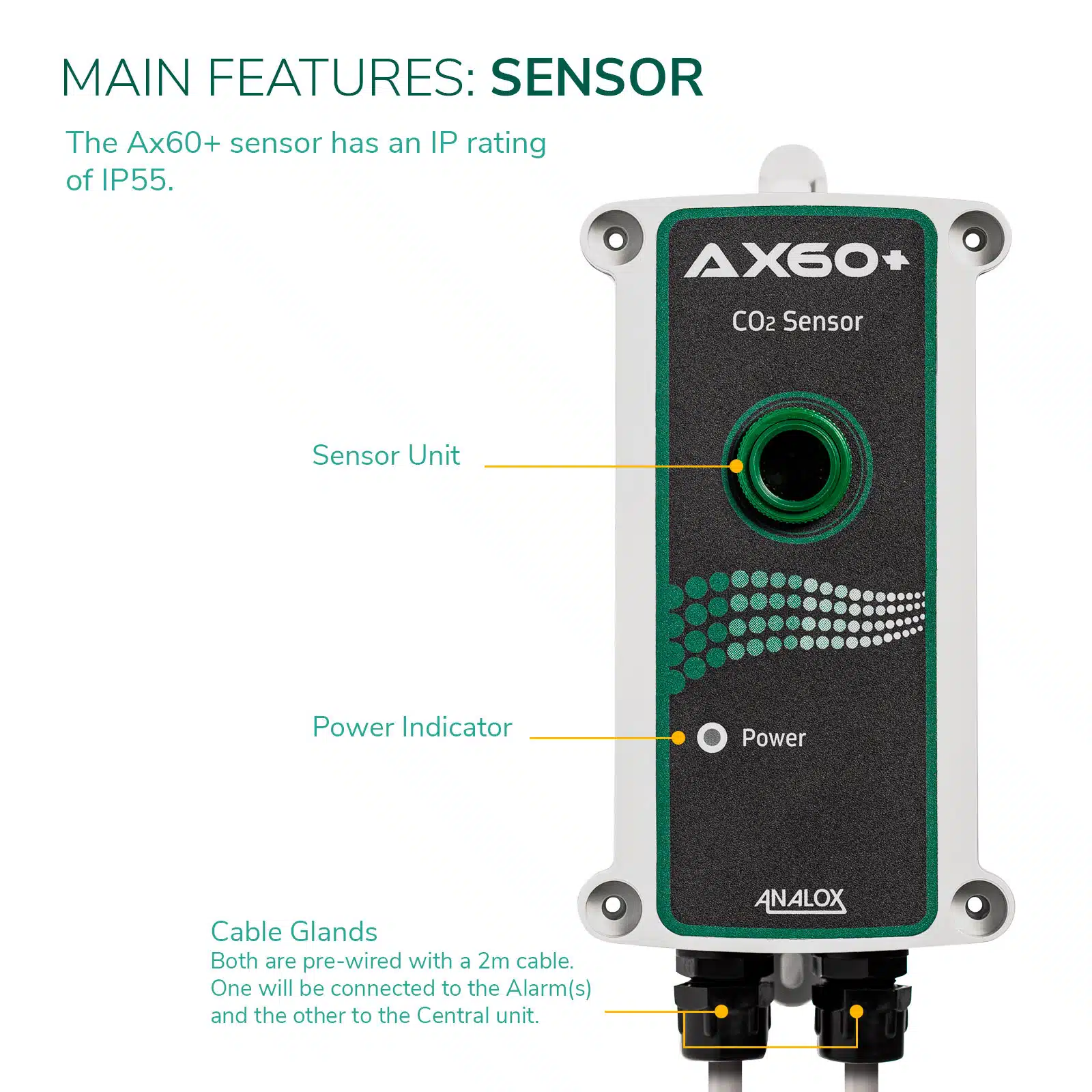

| IP Rating | IP55 |

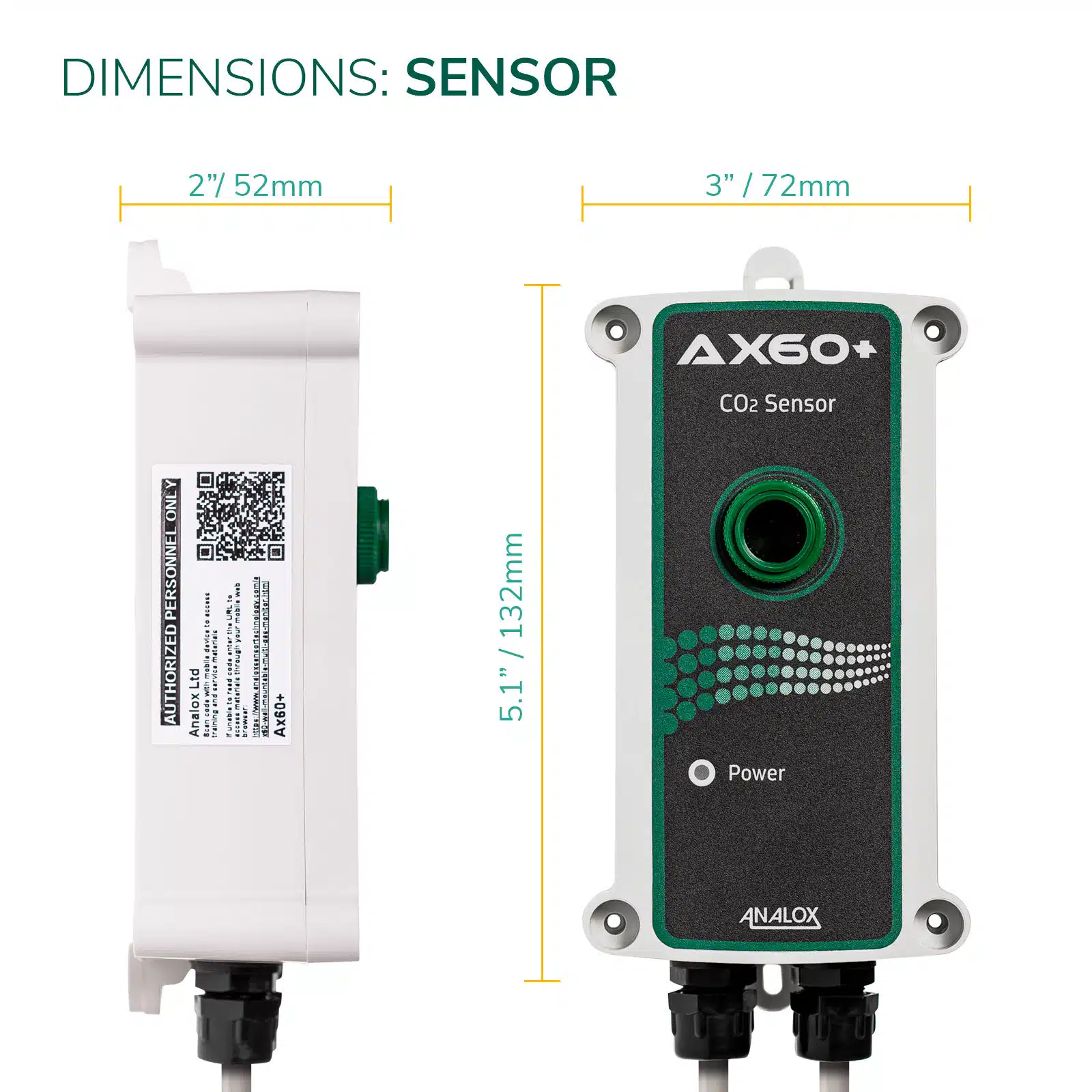

| Dimensions | W: 3” / 72mm H: 5.1” / 132mm D: 2” / 52mm |
If your requirements go beyond a single CO2 sensor or if your business is poised for future expansion, the Ax60+ Modular System presents an ideal expansion solution for your gas sensing setup with the ability to monitor CO2, O2, CO or a combination of these.
For example, you work in the brewery industry and you already have a CO2 sensor in place for monitoring carbonation during beverage production. While CO2 sensors are critical for monitoring the levels of carbon dioxide released during the fermentation and carbonation processes, integrating an O2 sensor into the system offers additional layers of safety and efficiency.
In the brewing industry, monitoring oxygen levels is crucial during various stages of brewing. In specific fermentation processes, maintaining precise O2 levels is essential for yeast propagation and overall product quality. Integrating O2 sensors provides data to optimize these conditions and ensure consistent brewing results.
In this industry-specific use case, expanding the sensor system beyond CO2 to include O2 sensors offers a comprehensive approach to safety and quality control, addressing specific challenges and requirements within the brewery’s production processes.
We offer a range of sensors that can be connected to the Ax60+ to suit your requirements. Explore our sensor range below to find the ideal fit for your needs:

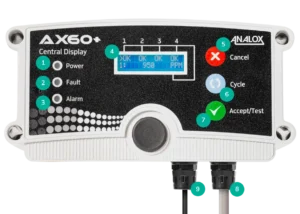

The Ax60+ Central Display Unit conveniently presents accurate gas sensor readings in a single location, such as a manager’s office. Its capability to connect with up to four sensors offers an effective solution for monitoring their operational statuses.
The Ax60+ Alarm Units uses a white LED strobe exceeding 100 cd, with a choice between blue, red, or amber filters. Alarm units feature a sounder exceeding 80 dBA (at 3 meters), ensuring prompt alerts to elevated or hazardous CO2 levels in the vicinity. Each sensor accommodates up to 4 alarm units, or a total of 8 alarm units per system.
Its flexibility is what makes it such a good product as it can suit a wide range of requirements each customer may present. There are a multitude of sensors, alarms and strobes you can attach to one CDU (central display unit). Included in this expansive set up choices are optional add on’s, such as a beacon, a Kiosk set up and a DOM (Data output module).
